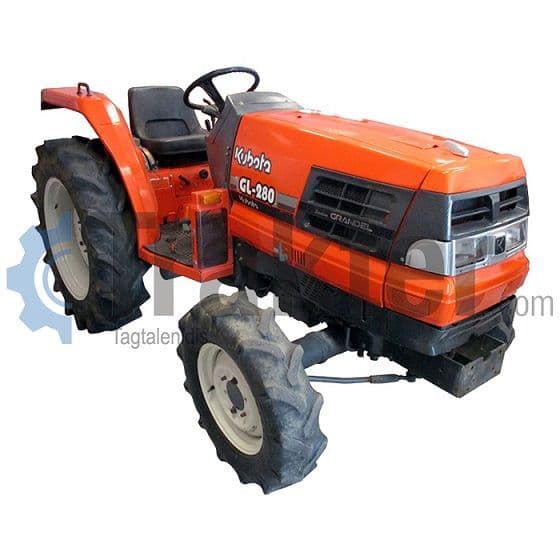

Kubota GL280

Last Updated: June 2024

Overview

The Kubota GL280 is a compact utility tractor that was manufactured by Kubota from 1993 until 1995. It features a 4x4 MFWD 4WD chassis, which means that it is a four-wheel drive tractor with mechanical front-wheel drive. It is steered via a power steering system, providing ease of handling. This tractor is equipped with a 16-speed gear transmission and an optional power shift, giving it a good range of speed options for various tasks. It has a three-cylinder Kubota D1503 diesel engine with a displacement of 91.5 cubic inches and a bore and stroke measuring 3.268 inches and 3.638 inches respectively. It operates at up to 2600 rated RPM and delivers a power output of 27.6 horsepower. The tractor can be fitted with a ROPS (roll-over protection structure) or a cab, resulting in different weights and heights. The tractor's length also varies depending on the presence of a ROPS or cab. Its design includes a significant ground clearance of 14.2 inches that enables operation over uneven terrain. Other dimensional specifications such as the wheelbase, width, and the tread for both front and rear tires provide stability and navigation capability over different types of soil. The Kubota GL280 was part of the GL Series and could accommodate a variety of attachments via its Category I three-point hitch.
Show more...

Key Specifications

Category: Utility

Power Output: 27.6

Transmission: Gear with optional power shift

Drive Type: 4WD

Operating Weight: Unknown (Weight varies by ROPS/Cab: 2679 lbs with ROPS, 2976 lbs with cab)

Fuel Type: Diesel

Kubota GL280 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1503
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.5
Bore (in)
3.268
Stroke (in)
3.638
Rated RPM
2600
Power Output (hp)
27.6

Transmission

Type
Gear with optional power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
55.9
Height (in)
Unknown (Height varies by ROPS/Cab: 78.5 inches with ROPS, 77.6 inches with cab)
Operating Weight (lb)
Unknown (Weight varies by ROPS/Cab: 2679 lbs with ROPS, 2976 lbs with cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
1995
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Operator Station varies by ROPS/Cab)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
