Kubota GL260

Last Updated: June 2024

Overview

The Kubota GL260 is a compact utility tractor which was manufactured between 1993 and 1995. It is designed with a 4x4 MFWD 4WD (four-wheel drive) chassis and is powered by a 25.6 horsepower Kubota D1503 three-cylinder diesel engine. The power output is complemented by a liquid cooling system and a 16-speed gear transmission with power shift, allowing for robust and variable operation. The tractor is characterized by a wheelbase of 64.8 inches and weighs between 2601 and 2888 pounds, depending on the presence of ROPS or a cab. It has a dry disc clutch, which contributes to the tractor's reliability and durability. With its considerable ground clearance of 13.6 inches and a standard tire configuration with 7-16 front and 11.2-24 rear tires, the GL260 is well-suited for a variety of tasks across a range of terrains.

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Gear with power shift

Drive Type: 4WD

Operating Weight: Operating Weight (ROPS): 2601 | Operating Weight (cab): 2888

Fuel Type: Diesel

Image Gallery

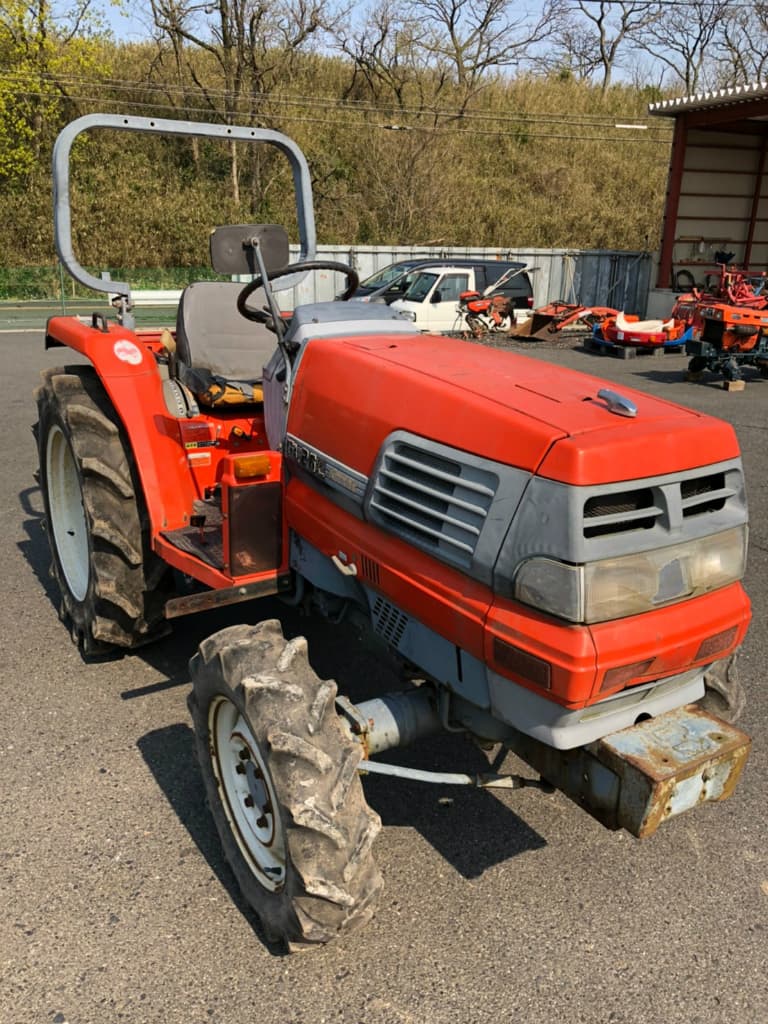

Kubota GL260 Tractor

Kubota GL260 vs. Similar Tractors

Power Output

Below Average

Greater than 19% of similar tractors.

Operating Weight

Above Average

Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1503
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 91.5
Bore (in): 3.268
Stroke (in): 3.638
Rated RPM: 2600
Power Output (hp): 25.6

Transmission

Type: Gear with power shift
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 120.1
Width (in): 53.2
Height (in): Height (ROPS): 76.8 | Height (cab): 78.5
Operating Weight (lb): Operating Weight (ROPS): 2601 | Operating Weight (cab): 2888

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 1995
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
