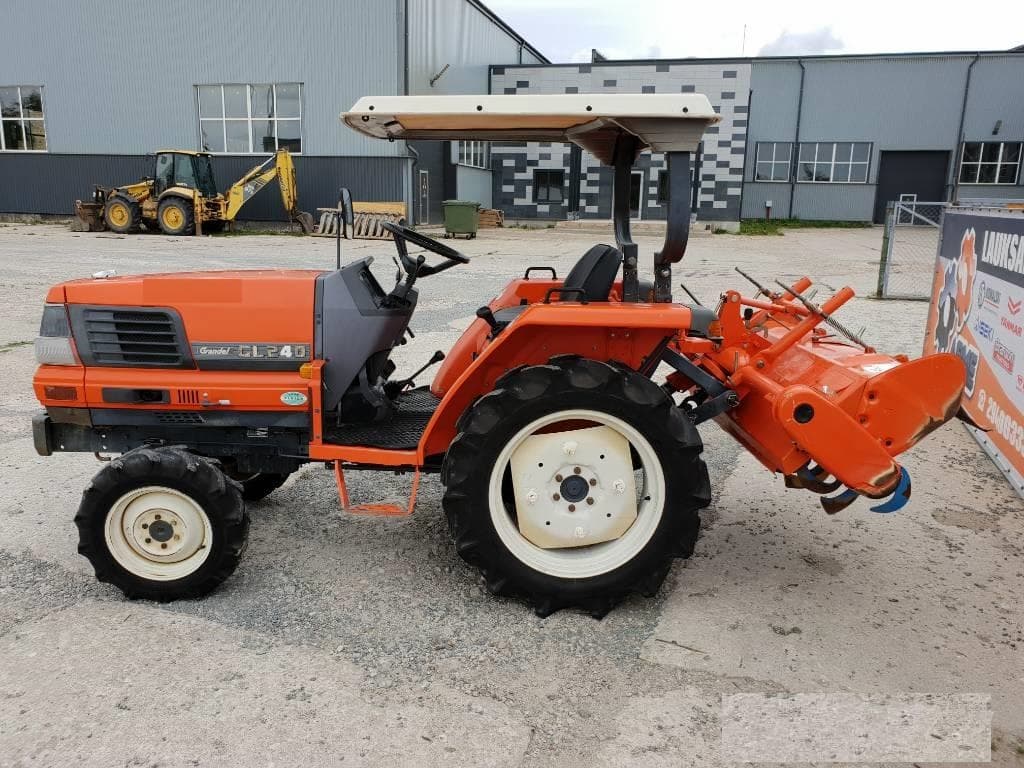

Kubota GL240

Last Updated: June 2024

Overview

The Kubota GL240 is a Compact Utility Tractor engineered for versatility and reliability. Manufactured between 1993 and 1995, the GL240 is powered by a robust Kubota D1463 diesel engine, providing 23.7 horsepower, ensuring sufficient power for a range of agricultural tasks. The engine is liquid-cooled, ensuring durability in various working conditions and features a displacement of 89.3 cubic inches. With a 4x4 MFWD 4WD chassis and power steering, the tractor offers enhanced control and maneuverability. The transmission is quite complex, with both gear and power shift capabilities, leading to 16 forward and reverse speeds. The tractor comes in configurations that either accommodate a Rollover Protection System (ROPS) or a cab, affecting both dimensions and weight. Ground clearance stands at 13.8 inches, paired with a standard ag tire setup, which, along with the tractor's build, provides suitable stability and traction.
Show more...

Key Specifications

Category: Utility

Power Output: 23.7

Transmission: Gear / Power shift

Drive Type: 4WD

Operating Weight: ROPS: 2436 | Cab: 2833

Fuel Type: Diesel

Kubota GL240 vs. Similar Tractors

Power Output
Below Average
Greater than 15% of similar tractors.
Operating Weight
Above Average
Greater than 83% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1463
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
89.3
Bore (in)
3.23
Stroke (in)
3.64
Rated RPM
2500
Power Output (hp)
23.7

Transmission

Type
Gear / Power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
ROPS: 116.1 | Cab: 118.3
Width (in)
ROPS: 49.2 | Cab: 51.2
Height (in)
ROPS: 78 | Cab: 78.5
Operating Weight (lb)
ROPS: 2436 | Cab: 2833

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
1995
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS / Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
