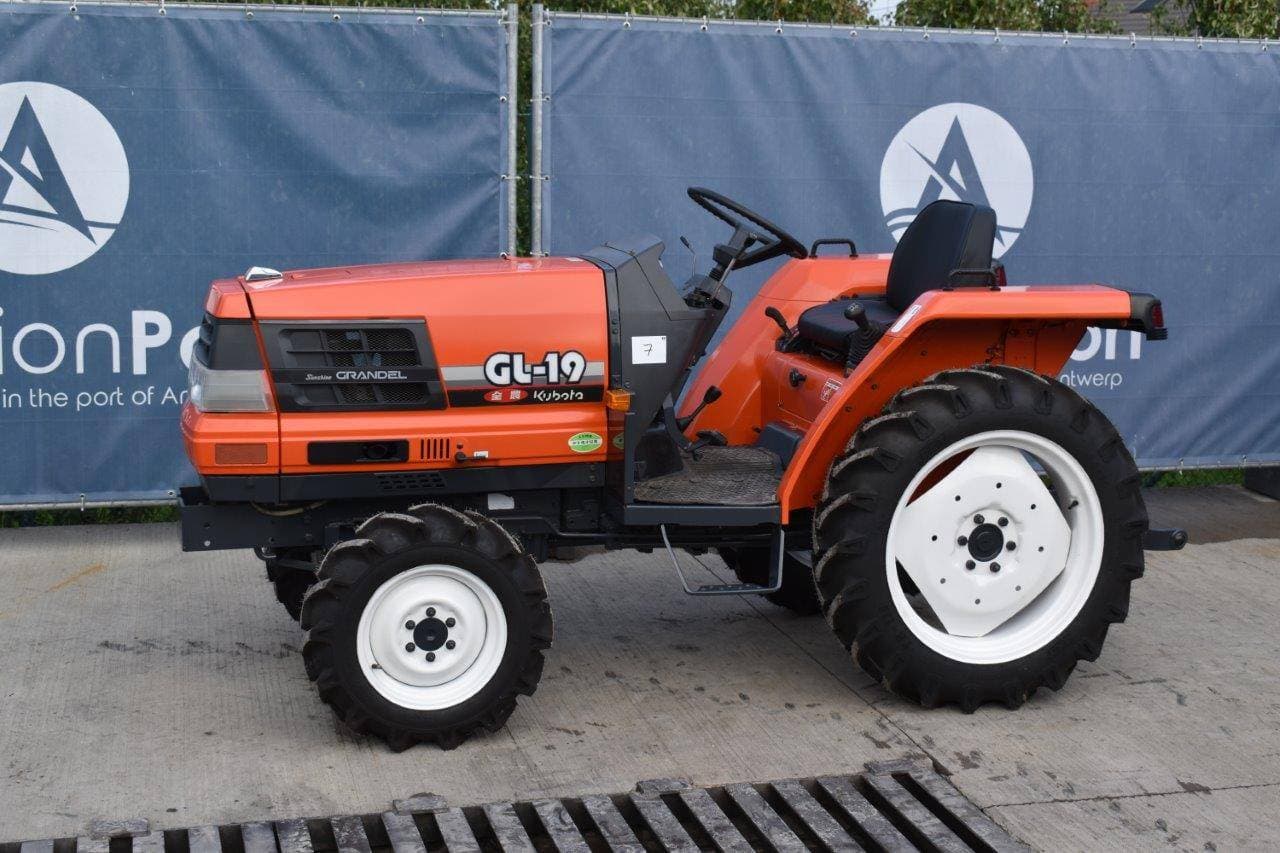

Kubota GL19

Last Updated: June 2024

Overview

The Kubota GL19 is a compact utility tractor that was manufactured by Kubota between 1990 and 1992. It is a four-wheel-drive (4WD) tractor, with both gear and power shift transmission types, offering a total of 32 gears for flexibility in a wide range of operations. Featuring a Kubota D1403 engine, it delivers a power output of 18.7 horsepower and operates at a rated RPM of 2500, with a displacement of 85 cubic inches. The liquid-cooled diesel engine ensures efficient temperature management even during heavy use. The tractor's chassis and tire specifications establish its strength and terrain maneuverability, although the exact tire dimensions were not provided. It has a wheelbase of 61 inches, and the notable dimensions include a length of 116.1 inches, a width of 49.2 inches, and a height of 56.7 inches, supporting its reputation as a versatile and durable machine for a variety of tasks. Weighing in at 2249 pounds, it provides substantial ground clearance and a stable operating platform for its class. The GL19 is equipped for a range of tasks, pertinent to its utility class, though details about hitch systems and power take-off (PTO) were not specified.
Show more...

Key Specifications

Category: Utility

Power Output: 18.7

Transmission: Gear, Power Shift

Drive Type: 4WD

Operating Weight: 2249

Fuel Type: Diesel

Kubota GL19 vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1403
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
85
Bore (in)
3.1
Stroke (in)
3.6
Rated RPM
2500
Power Output (hp)
18.7

Transmission

Type
Gear, Power Shift
Forward Gears
16
Reverse Gears
-
Total Gears
32

Dimensions

Length (in)
116.1
Width (in)
49.2
Height (in)
56.7
Operating Weight (lb)
2249

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1992
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
