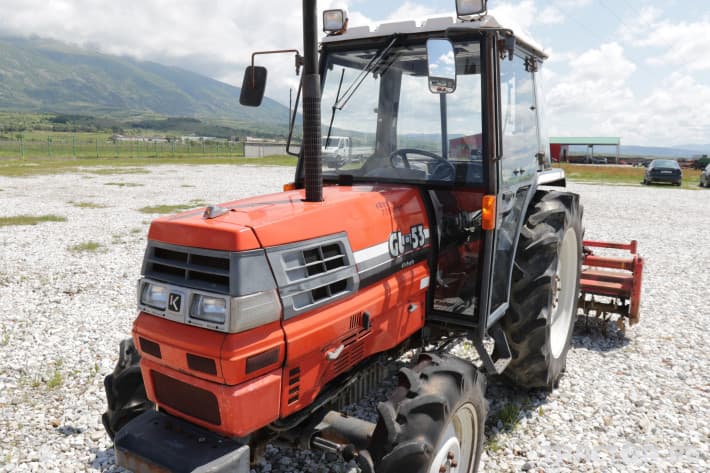

Kubota GL-53

Last Updated: June 2024

Overview

The Kubota GL-53 is a compact utility tractor offering versatile capabilities thanks to its 4x4 MFWD 4WD chassis and powerful engine. With a robust 53 hp diesel engine, the tractor operates with 16 forward and reverse gears, ensuring a wide range of speeds for various tasks. The Kubota F2803 engine is liquid-cooled, ensuring reliability and durability, especially in demanding conditions. It features a large displacement of 167.6 cubic inches and operates at a rated speed of 2600 RPM. The tractor has a wheelbase of 78.2 inches, demonstrating stability in its operations. The weight ranges from 3836 to 4255 pounds, suggesting a solid, stable base for handling heavy tasks. With dimensions accommodating to various farm settings (length of 142.9 inches and width of 59.3 inches) and the presence of a ROPS or cab configuration, the tractor ensures operator comfort and safety. The Kubota GL-53 was manufactured from 1991 to 1995 and remains a reliable choice for farmers in need of a powerful yet compact utility tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 53

Transmission: Manual

Drive Type: MFWD 4WD

Operating Weight: 3836 to 4255

Fuel Type: Diesel

Kubota GL-53 vs. Similar Tractors

Power Output
Average
Greater than 51% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
F2803
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
5
Displacement (ci)
167.6
Bore (in)
3.4
Stroke (in)
3.6
Rated RPM
2600
Power Output (hp)
53

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
142.9
Width (in)
59.3
Height (in)
-
Operating Weight (lb)
3836 to 4255

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1995
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
