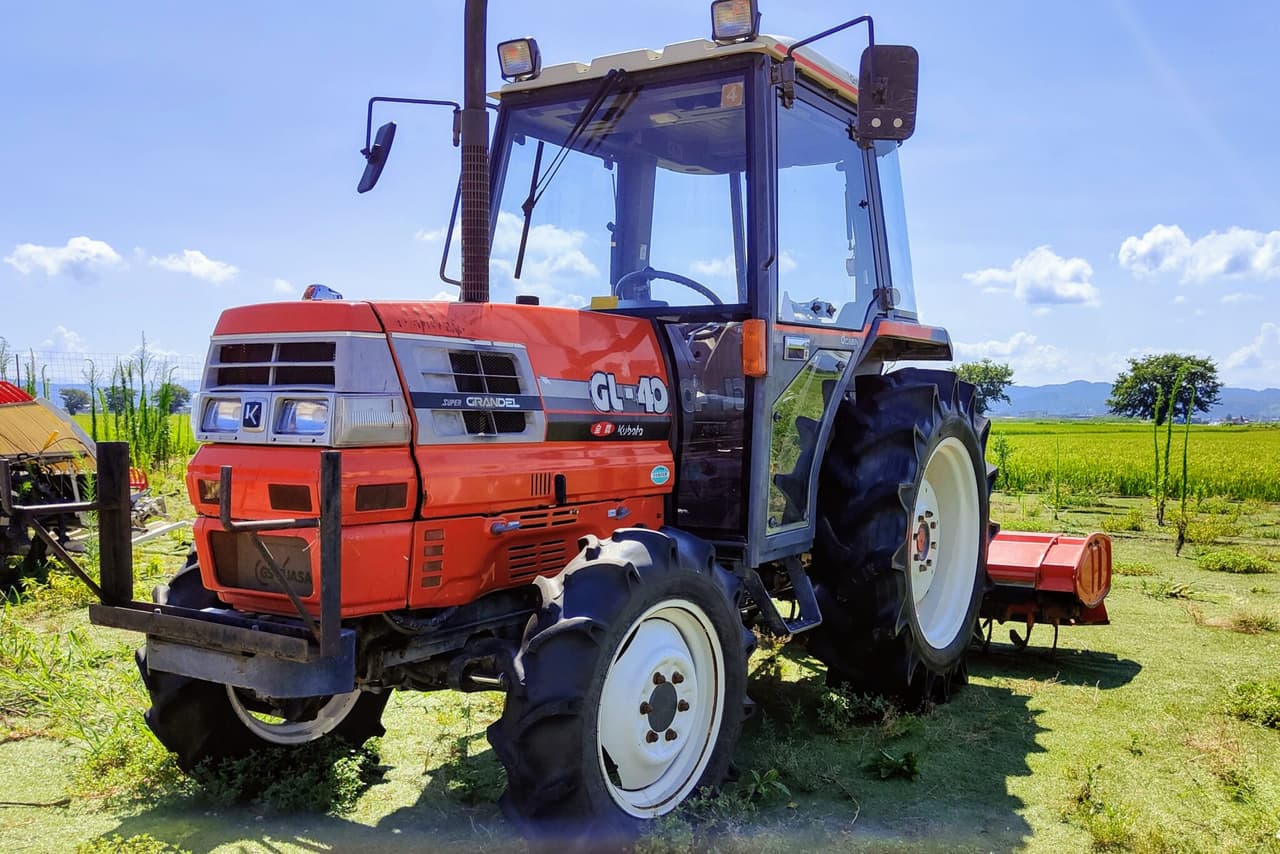

Kubota GL-400

Last Updated: June 2024

Overview

The Kubota GL-400 is a compact utility tractor that was manufactured from 1995 to 1998. It features a 40 horsepower Kubota diesel engine with liquid-cooling and a displacement of 134.1 cubic inches. The engine operates at a rated RPM of 2600. This tractor is equipped with a 4-wheel drive chassis, power steering, and an unknown transmission type with 16 forward and reverse gears, supporting a range of operations. The tractor's large wheelbase of 72.8 inches and its weight of 3990 pounds (with a cab) provide stability for various tasks. Its dimensions reflect a length of 137.6 inches, a width of 61 inches, and a height of 91.1 inches with the cab. Notably, the GL-400 offers significant ground clearance of 14.2 inches and the flexibility of adjustable rear tread settings. Designed with a ROPS weight of 3527 pounds and a cab weight of 3990 pounds, the GL-400 combines utility and versatility for a range of agricultural needs.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Drive Type: 4WD

Operating Weight: 3990

Fuel Type: Diesel

Kubota GL-400 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2203
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
40

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
137.6
Width (in)
61
Height (in)
91.1
Operating Weight (lb)
3990

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1998
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
