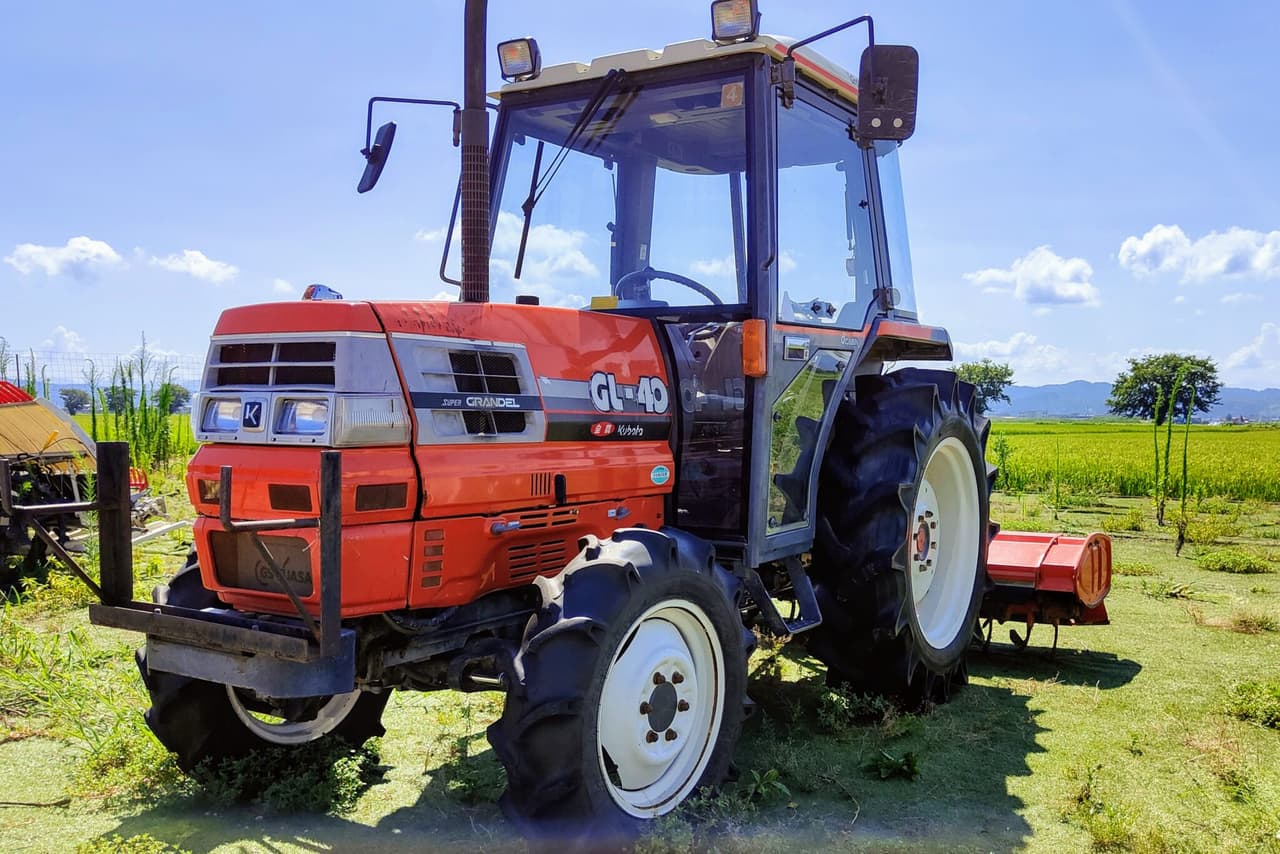

Kubota GL-40

Last Updated: June 2024

Overview

The Kubota GL-40 is a compact utility tractor that was manufactured by Kubota between 1991 and 1995. It features a 4-wheel drive chassis configured as 4x4 MFWD (mechanical front-wheel drive). Power is generated by a 40 hp Kubota V2203 diesel engine that is liquid-cooled and naturally aspirated, with a displacement of 134.1 cubic inches. The tractor operates using a power steering system and has a durable transmission with 16 forward and reverse gears. It is designed to accommodate a variety of agricultural tasks with standard agricultural tires, front: 8-18 and rear: 12.4-28. The GL-40 is known for its robust construction, with a wheelbase of 72.8 inches and a weight ranging from 3527 lbs when equipped with ROPS to 3946 lbs when outfitted with a cab. With an engine rated at 2600 RPM, it delivers adequate power for a range of operations, making it a reliable workhorse for small to medium-sized farms.
Show more...

Key Specifications

Category: Utility

Power Output: 40

Drive Type: 4WD

Operating Weight: 3527 (ROPS), 3946 (cab)

Fuel Type: diesel

Kubota GL-40 vs. Similar Tractors

Power Output
Average
Greater than 37% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V2203
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
naturally aspirated
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
40

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
32

Dimensions

Length (in)
137.6
Width (in)
61
Height (in)
86.6 (ROPS), 92.1 (cab)
Operating Weight (lb)
3527 (ROPS), 3946 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
agricultural
Manufacture - End Year
1995
Hitch Type
Category 3
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, cab
Starter Type
electric
Brake Type
-
Hydraulic System Type
-
