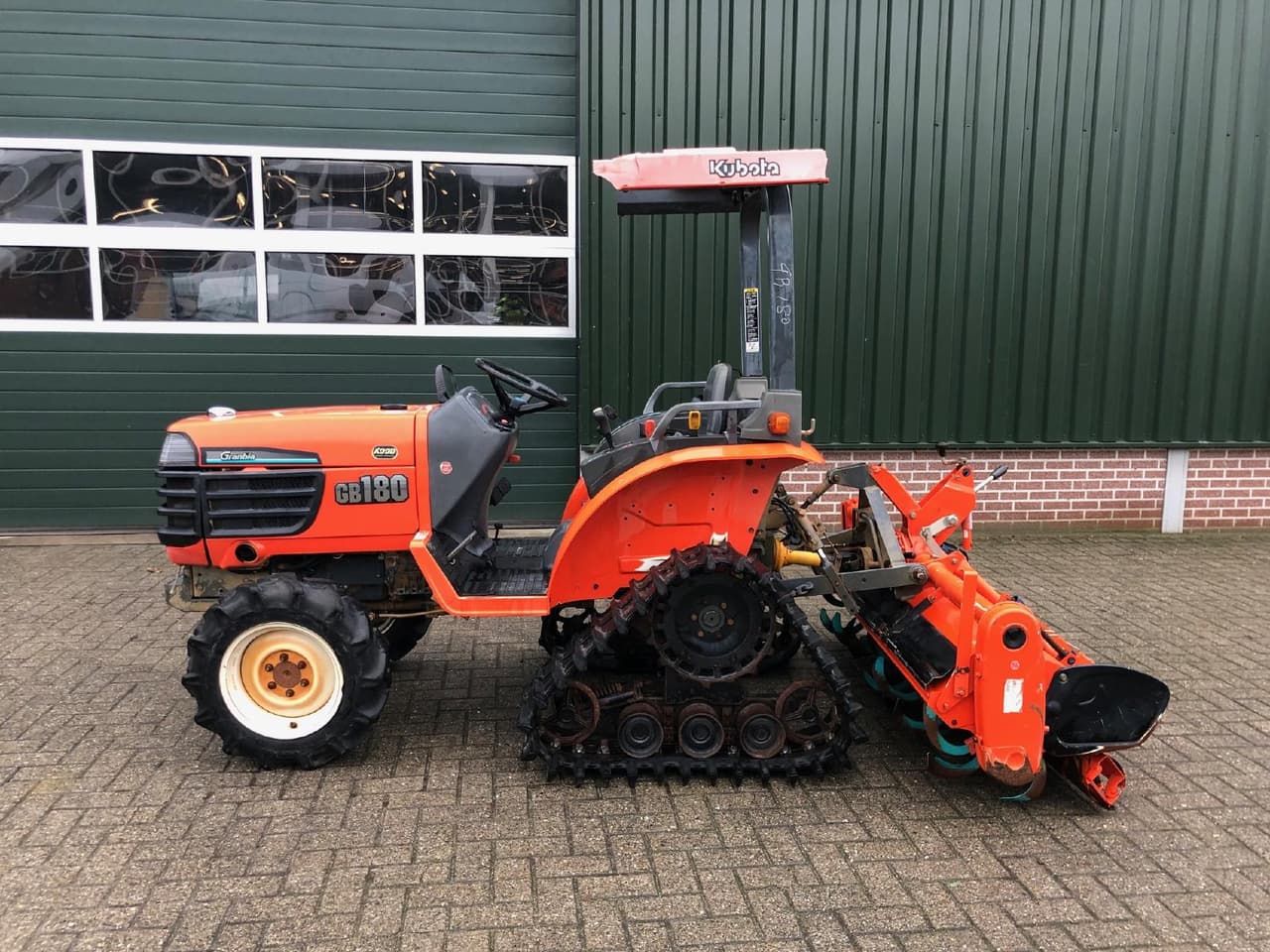

Kubota GB180

Last Updated: June 2024

Overview

The Kubota GB180 is a sub-compact utility tractor that was manufactured by Kubota from 2002 to 2003. This tractor is powered by a 17.7 horsepower Kubota D1005 diesel engine and has a liquid-cooling system. It operates at a rated RPM of 2600. Its chassis is a 4x4 MFWD 4WD, which provides reliable traction for a variety of tasks. The tractor features an 18 forward and 9 reverse gear transmission, offering versatility during operation. With regards to dimension, the GB180 is 92.3 inches long, 43.5 inches wide, and has a height of 74 inches (ROPS). The operating weight of this model ranges from 1532 to 1587 pounds. The GB180 is designed to provide power and maneuverability in a compact size, making it suitable for a wide range of tasks around small farms and properties. It has a notable ground clearance of 13 inches and comes with standard agricultural tires with sizes front: 6.00-12 and rear: 8.3-22. The tractor's compact dimensions, coupled with the Glideshift transmission, ensure it is capable of handling both general-purpose farming and garden work.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 17.7

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1532 to 1587

Fuel Type: Diesel

Kubota GB180 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Above Average
Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
61.1
Bore (in)
2.99
Stroke (in)
2.9
Rated RPM
2600
Power Output (hp)
17.7

Transmission

Type
Gear
Forward Gears
18
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
92.3
Width (in)
43.5
Height (in)
74
Operating Weight (lb)
1532 to 1587

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2003
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric (assumed from engine - starter volts: 12)
Brake Type
-
Hydraulic System Type
-
