Kubota GB145

Last Updated: June 2024

Overview

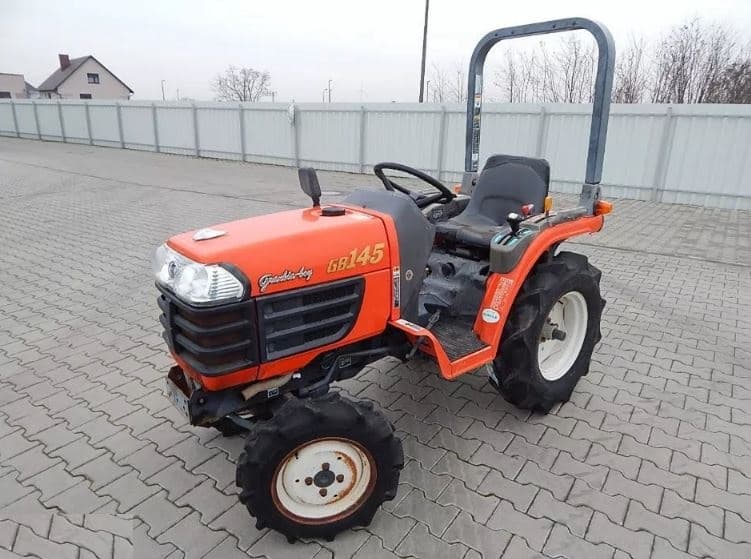

The Kubota GB145 is a sub-compact utility tractor that was manufactured by Kubota between 2004 and 2006. The tractor features a 4x4 MFWD 4WD chassis and is powered by a Kubota D722, a liquid-cooled, three-cylinder diesel engine that delivers 13.8 horsepower. It operates at 2800 rated RPM and has an engine displacement of 43.9 cubic inches. The GB145's manual steering and 6-speed gear transmission with 6 forward and 2 reverse gears cater to a variety of tasks, enhancing its functionality in a range of scenarios. This model comes with a standard tire configuration suitable for agricultural applications and a weight of 1190 lbs, making it suitable for light to medium-duty tasks. With an overall length of 79.5 inches, a width of 41.7 inches, and a height featuring ROPS at 71.3 inches, this tractor can handle common tasks in a small farm setting. Its operating weight and compact dimensions make it easy to maneuver and operate in smaller spaces.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 13.8

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1190

Fuel Type: Diesel

Kubota GB145 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D722
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
43.9
Bore (in)
2.64
Stroke (in)
2.68
Rated RPM
2800
Power Output (hp)
13.8

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
79.5
Width (in)
41.7
Height (in)
71.3 (ROPS)
Operating Weight (lb)
1190

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2006
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric (assumed due to "Engine - Starter volts: 12" being present)
Brake Type
-
Hydraulic System Type
-
