Kubota GB14

Last Updated: June 2024

Overview

The Kubota GB14 is a compact utility tractor that was manufactured by Kubota between 1997 and 2001. It is powered by a Kubota D722 diesel engine with a displacement of 43.9 cubic inches and a power output of 13.8 horsepower. The engine operates at a rated RPM of 2800 and utilizes a liquid cooling system. This tractor is equipped with a gear transmission with 6 forward and 2 reverse gears. The GB14 has a length of 79.5 inches, a width of 37.8 inches, and a height of 71.3 inches with ROPS, providing a compact footprint suitable for a variety of tasks. With an operating weight of 1190 pounds and a wheelbase of 50 inches, this model is designed for stability and maneuverability. The tractor's tire and hydraulic specifications are not specified, and further detail on its hitch capabilities and PTO speeds are not available.

Key Specifications

Power Output: 13.8

Transmission: Gear

Operating Weight: 1190

Fuel Type: Diesel

Image Gallery

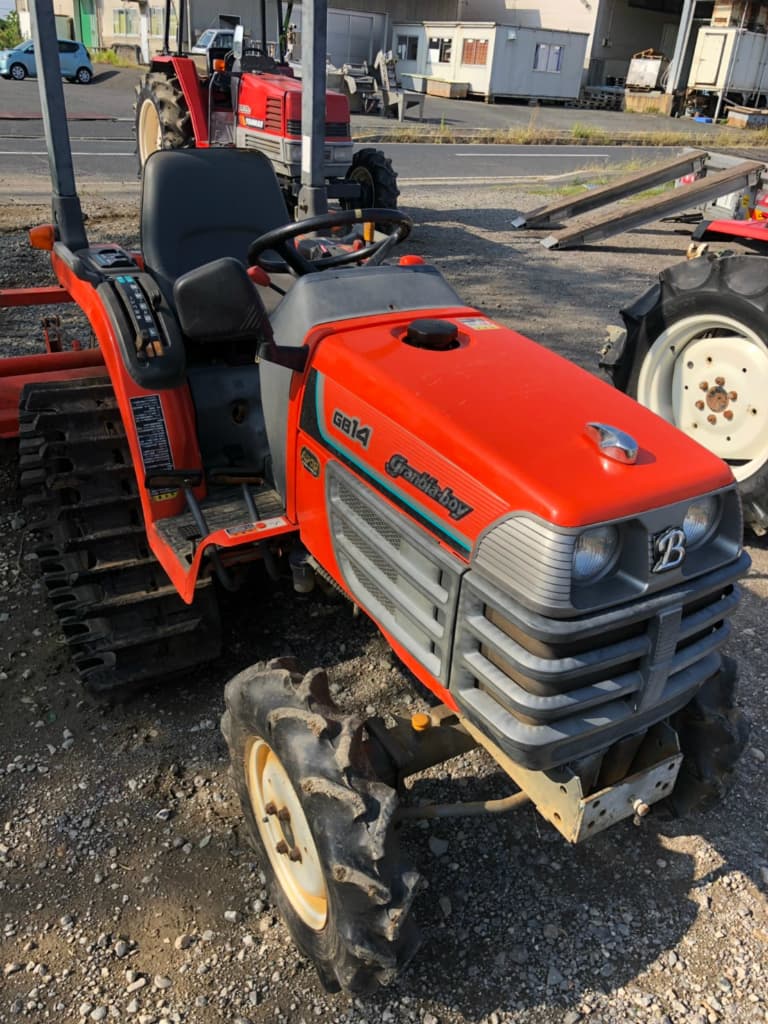

Kubota GB14 Tractor

Technical Specifications

Engine

Manufacturer: Kubota
Model: D722
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 43.9
Bore (in): 2.64
Stroke (in): 2.68
Rated RPM: 2800
Power Output (hp): 13.8

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 79.5
Width (in): 37.8
Height (in): 71.3
Operating Weight (lb): 1190

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: 2001
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
