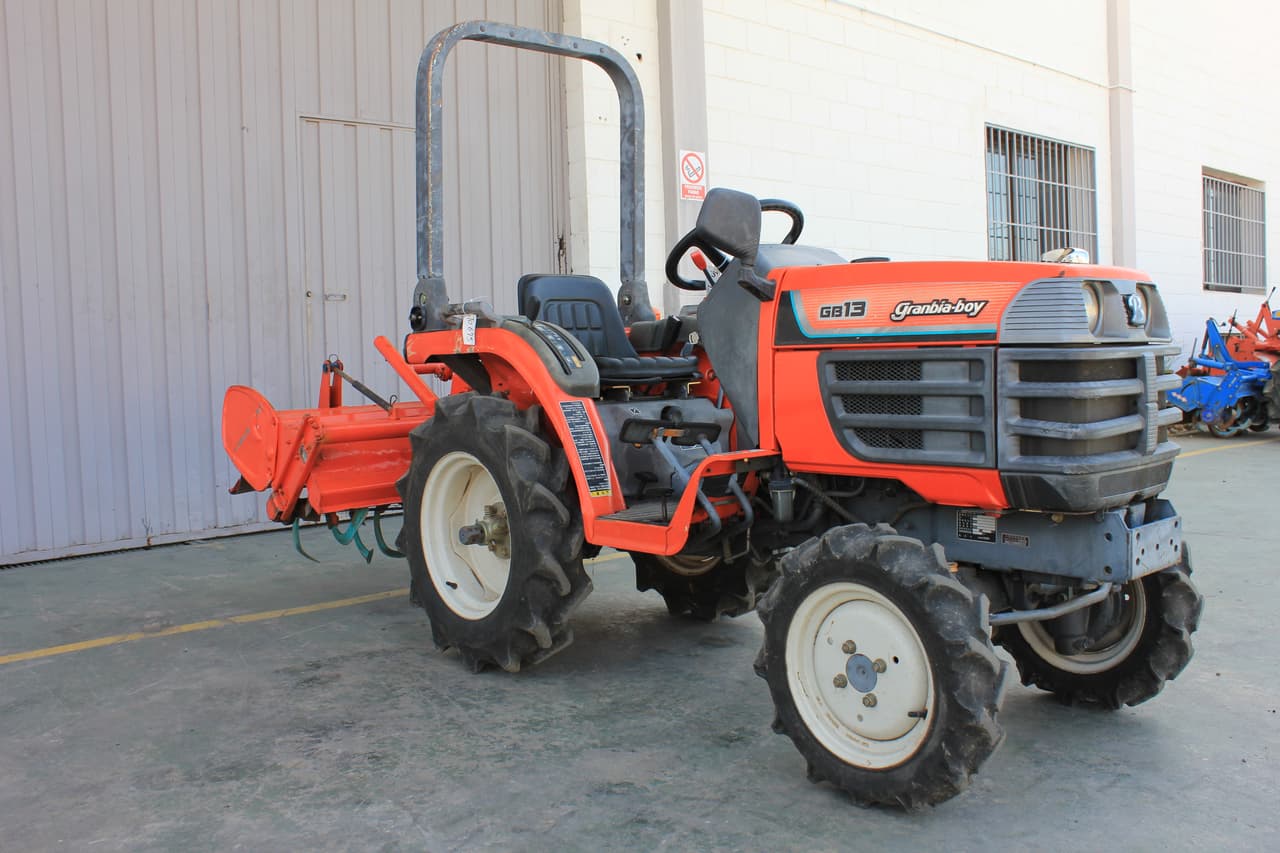

Kubota GB13

Last Updated: June 2024

Overview

The Kubota GB13 is a compact tractor, which was manufactured between the years 1997 and 2001. This model comes with a robust Kubota D662 diesel engine with a displacement of 40 cubic inches, capable of delivering 12.9 horsepower at 2800 RPM. The three-cylinder engine is liquid-cooled and naturally aspirated. The tractor is outfitted with a gear transmission system, offering 6 forward and 2 reverse gears, ensuring versatility for a range of tasks. With a wheelbase of 50 inches, the GB13 provides stability in a variety of conditions, and its relatively light operating weight of 1157 pounds makes it well-suited for various jobs around smaller farms or properties. Its dimensions are 78.5 inches in length, 37 inches in width, and it stands 70.3 inches tall with ROPS. Standard agricultural tires come in front 4.00-12 and rear 7-16 sizing, aiding in good traction and handling. This tractor's performance details, paired with its specifications, reflect its utility for a range of agricultural tasks.
Show more...

Key Specifications

Power Output: 12.9

Transmission: Gear

Operating Weight: 1157

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Kubota
Model
D662
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
40
Bore (in)
2.52
Stroke (in)
2.68
Rated RPM
2800
Power Output (hp)
12.9

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
78.5
Width (in)
37
Height (in)
70.3
Operating Weight (lb)
1157

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
4
Rear Tire Diameter (in)
-
Rear Tire Width (in)
7
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
2001
Hitch Type
Category 0
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
