Kubota BX2670-1

Last Updated: June 2024

Overview

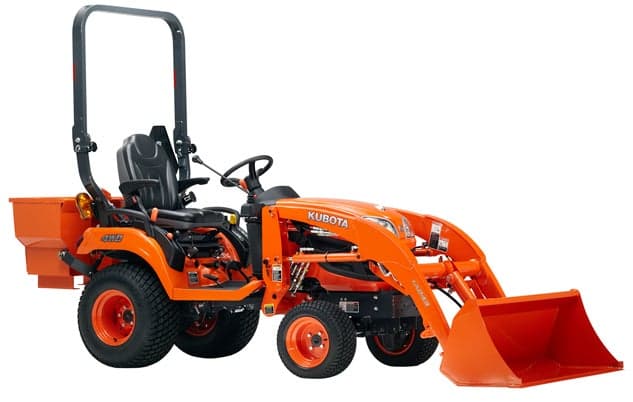

The Kubota BX2670-1 is a compact utility tractor designed for a variety of tasks around the farm or estate. With a chassis featuring 4x4 MFWD 4WD and power steering, this model offers improved maneuverability and traction compared to two-wheel-drive counterparts. It's equipped with a Kubota D1005 liquid-cooled diesel engine with a displacement of 61.1 cubic inches, capable of delivering 25.5 horsepower at an engine-rated RPM of 3200. The hydrostatic transmission implies ease of use with infinite forward and reverse gears within two ranges. With a weight of 1466 pounds and dimensions of 95.5 inches in length, 44.5 inches in width, and 87.2 inches in height, the BX2670-1 is designed to be robust yet compact enough to handle a multitude of tasks without being overly cumbersome. The tractor was produced from 2015 to 2016 and is part of the BX series from Kubota.
Show more...

Key Specifications

Category: Utility

Power Output: 25.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1466

Fuel Type: Diesel

Kubota BX2670-1 vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
61.1
Bore (in)
-
Stroke (in)
-
Rated RPM
3200
Power Output (hp)
25.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
95.5
Width (in)
44.5
Height (in)
87.2
Operating Weight (lb)
1466

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
3.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural, Lawn/Turf, Industrial
Manufacture - End Year
2016
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
