Kubota BX25D

Last Updated: June 2024

Overview

The Kubota BX25D is a compact utility backhoe loader tractor that was produced by Kubota between 2013 and 2016. It features a 23 horsepower three-cylinder diesel engine and a hydrostatic transmission with a 4WD chassis. The BX25D is equipped with a foldable ROPS, wet disc brakes, and an open center hydraulic system. The backhoe loader can be utilized for a variety of tasks and is compatible with a range of attachments that further enhance its functionality.

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 23

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2470

Fuel Type: Diesel

Image Gallery

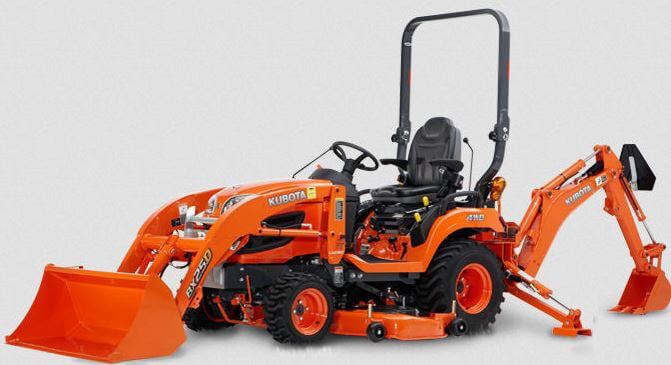

Kubota BX25D Tractor

Kubota BX25D vs. Similar Tractors

Power Output

Below Average

Greater than 16% of similar tractors.

Hitch Capacity

Average

Greater than 47% of similar tractors.

Operating Weight

Average

Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D902
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 54.8
Bore (in): 2.83
Stroke (in): 2.9
Rated RPM: 3200
Power Output (hp): 23

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 95.3
Width (in): 44.5
Height (in): 87
Operating Weight (lb): 2470

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 2500 (Middle PTO)
PTO Speed 2 (rpm): 540 (Rear PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 2.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Industrial
Manufacture - End Year: 2016
Hitch Type: Three-Point Hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 992
Operator Station Type: Open operator station with folding ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
