Kubota BX24

Last Updated: June 2024

Overview

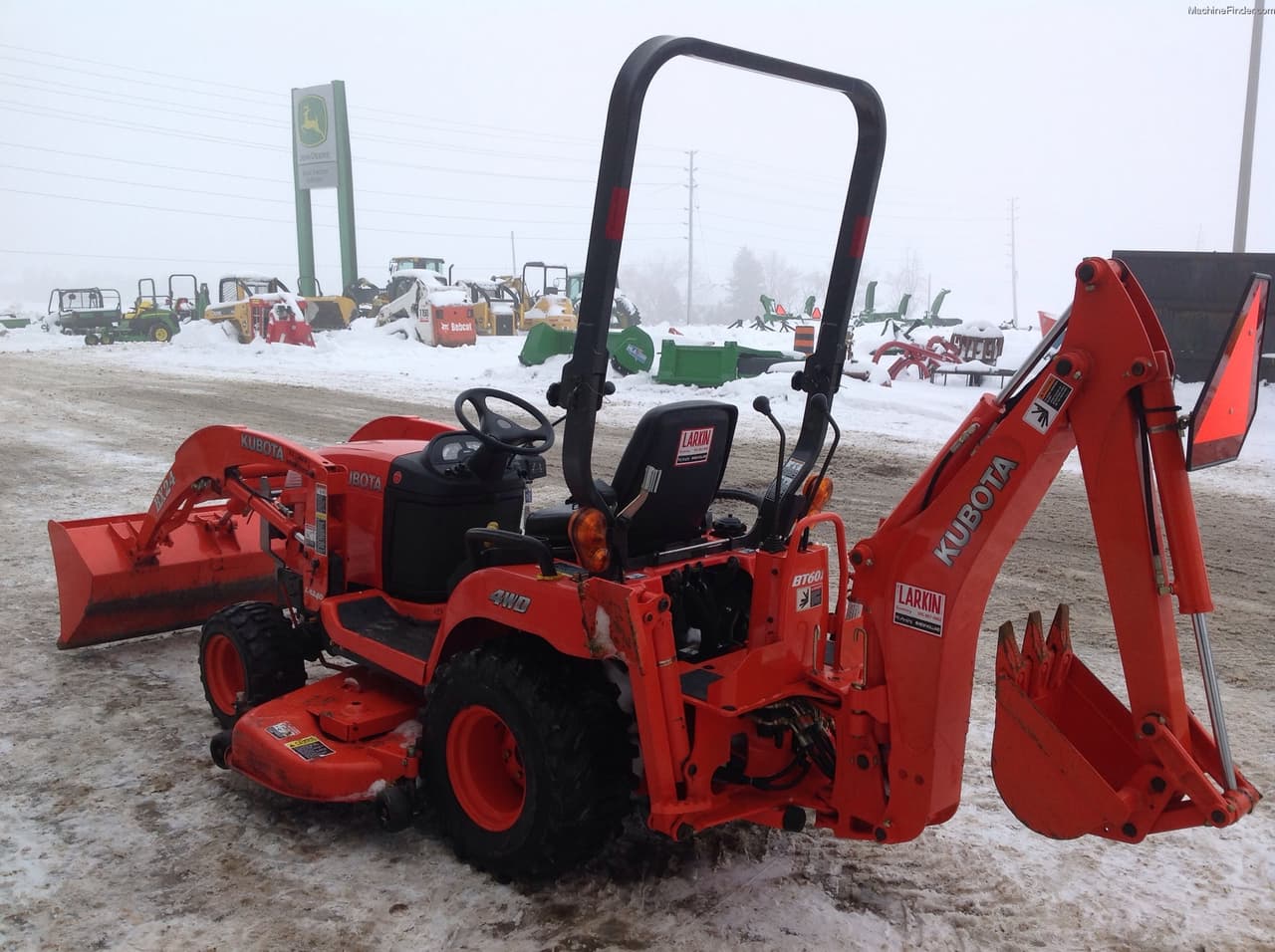

The Kubota BX24 is a versatile 4WD backhoe loader tractor that fits within the BX50 series, manufactured by Kubota between 2006 to 2009. It boasts a Kubota D902 engine, which is a three-cylinder diesel power unit with a displacement of 54.8 cubic inches, providing a power output of 23 horsepower at 3200 RPM. The tractor also features a hydrostatic transmission with an infinite range of forward and reverse gears, giving it substantial maneuverability and ease of operation. With its hydrostatic power steering and wet disc brakes, the BX24 promises controlled and responsive handling. Functional for a variety of tasks, the tractor is equipped with an open operator station complemented by a two-post ROPS for safety. Its three-point hitch and PTO system extend its usability for different agricultural implements, making it a suitable choice for small farms and landscaping projects.
Show more...

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 23

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2698

Fuel Type: Diesel

Kubota BX24 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Below Average
Greater than 27% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D902
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
3
Displacement (ci)
54.8
Bore (in)
2.83
Stroke (in)
2.9
Rated RPM
3200
Power Output (hp)
23

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
95.3
Width (in)
44.5
Height (in)
85
Operating Weight (lb)
2698

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2500
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
2.75
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Turf
Manufacture - End Year
2009
Hitch Type
Three-Point Hitch
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
661.4 lbs
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
