Kubota BX2360

Last Updated: June 2024

Overview

The Kubota BX2360 is a compact utility tractor part of the BX60 series, produced by Kubota from 2009 to 2013. It comes equipped with a Kubota D902 three-cylinder diesel engine with a displacement of 54.8 cubic inches, providing 23 horsepower at 3200 RPM. The tractor features hydrostatic power steering, a hydrostatic transmission offering infinite gear ranges in both forward and reverse. With a wet disc braking system, two-post fixed ROPS, and optional canopy, the BX2360 can accommodate different operator preferences. It has a Category I hitch with a 992-pound lift capacity, open center hydraulics, and independent PTO with speeds of 540 and 2500 RPM. Lawn/turf and industrial tire options are available for different types of work environments.

Key Specifications

Category: Utility

Power Output: 23

Transmission: Hydrostatic

Operating Weight: 1322

Fuel Type: Diesel

Lift Capacity: 992

Image Gallery

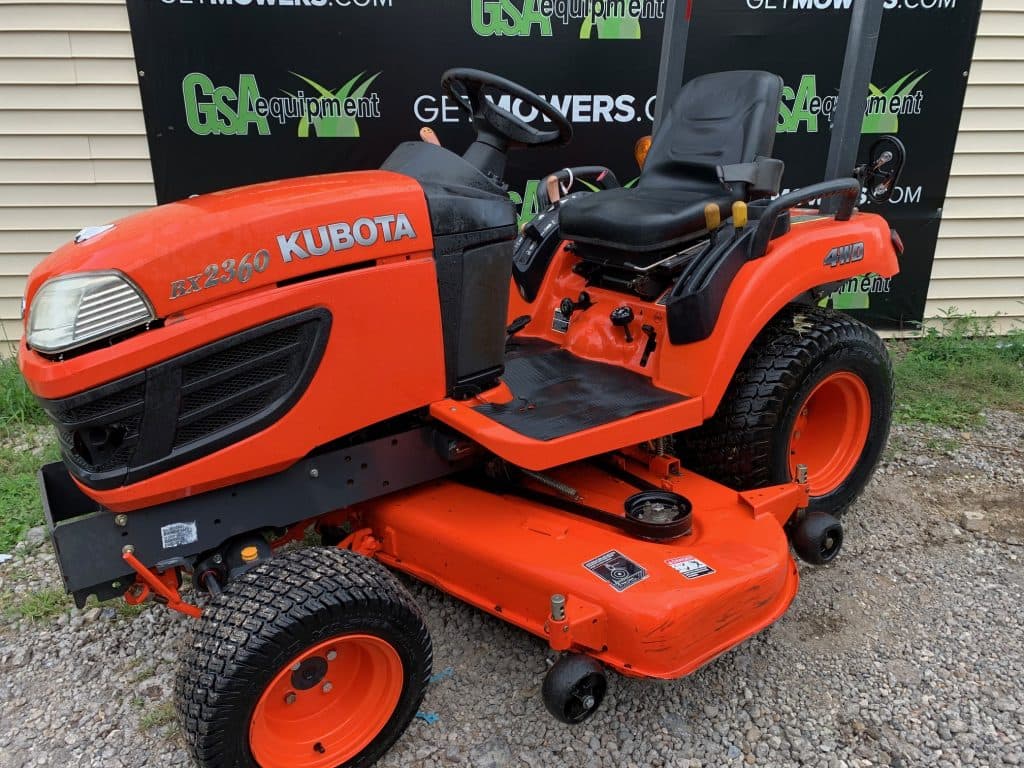

Kubota BX2360 Tractor

Kubota BX2360 vs. Similar Tractors

Power Output

Below Average

Greater than 14% of similar tractors.

Hitch Capacity

Below Average

Greater than 19% of similar tractors.

Operating Weight

Poor

Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D902
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 54.8
Bore (in): 2.83
Stroke (in): 2.9
Rated RPM: 3200
Power Output (hp): 23

Transmission

Type: Hydrostatic
Forward Gears: -
Reverse Gears: -
Total Gears: Infinite (2-range)

Dimensions

Length (in): 95.5
Width (in): 44.5
Height (in): 70.4
Operating Weight (lb): 1322

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2500
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 2.8
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf; Industrial (assumed from "Ag front" and "Ag rear" data)
Manufacture - End Year: 2013
Hitch Type: Category I
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): 992
Operator Station Type: Two-post fixed ROPS, Canopy (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
