Kubota BX2230

Last Updated: June 2024

Overview

The Kubota BX2230 is a 4WD sub-compact utility tractor from the BX30 series, manufactured by Kubota between 2004 and 2006. It features a Kubota D902-E-BX engine, a liquid-cooled, 0.9 L, three-cylinder diesel engine that provides a power output of 22 hp. The tractor is equipped with a hydrostatic transmission that offers infinite forward and reverse gears, making maneuvering and speed control relatively straightforward. This model has a three-point hitch with a lift capacity of 684 lbs and offers a comfortable operator station which can be configured as an open station with a two-post ROPS or an optional hard-side weather cab with a heater. The BX2230 is designed for a variety of tasks in confined spaces such as gardens, nurseries, and small farming operations.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 22

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1290

Fuel Type: Diesel

Image Gallery

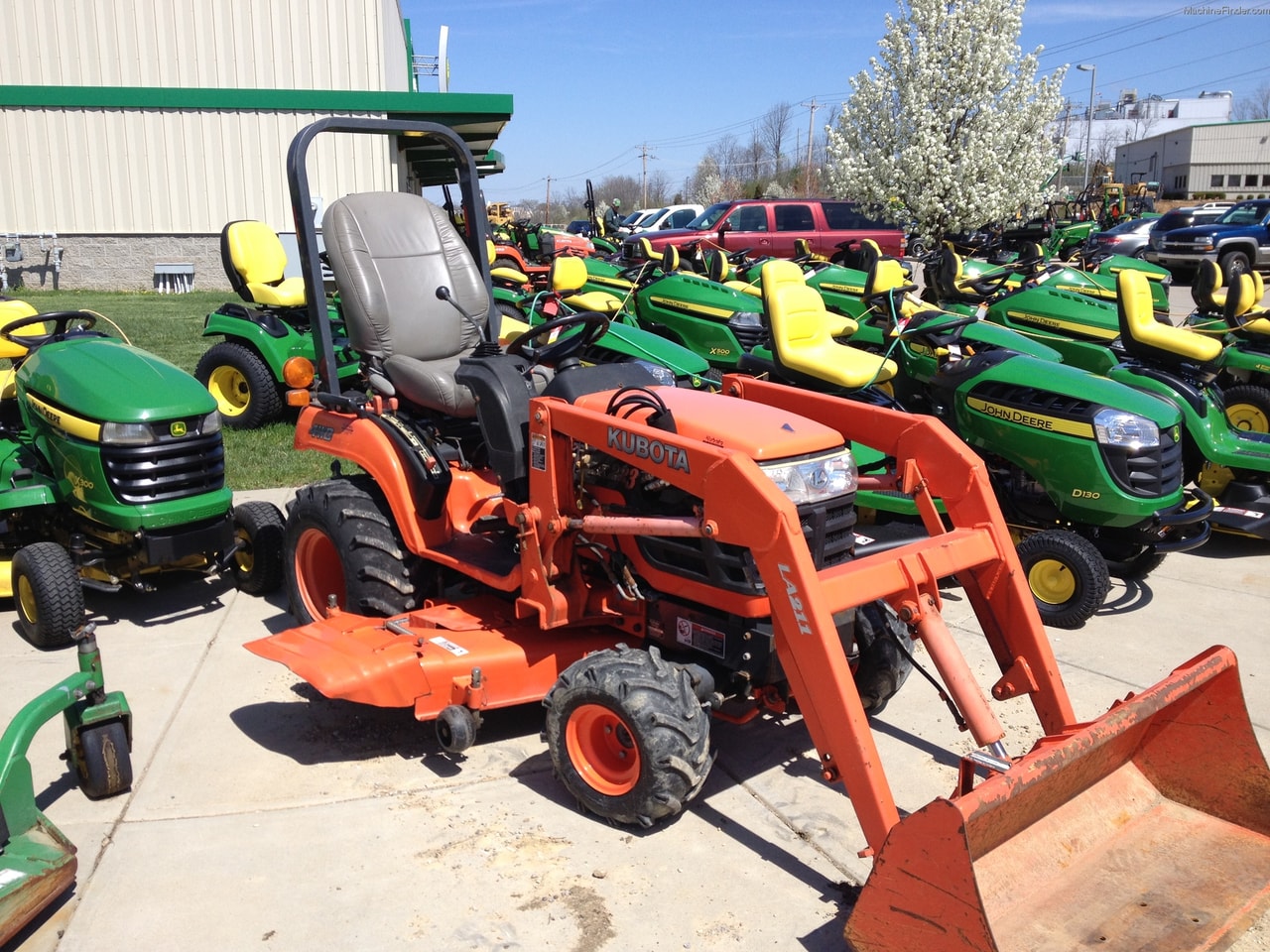

Kubota BX2230 Tractor

Kubota BX2230 vs. Similar Tractors

Power Output

Below Average

Greater than 13% of similar tractors.

Hitch Capacity

Below Average

Greater than 16% of similar tractors.

Operating Weight

Poor

Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D902-E-BX
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspirated
Cylinders: 3
Displacement (ci): 54.8
Bore (in): 2.83
Stroke (in): 2.9
Rated RPM: 3200
Power Output (hp): 22

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 77.6
Width (in): 44.9
Height (in): 70.9
Operating Weight (lb): 1290

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540 (rear), 2500 (middle)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf
Manufacture - End Year: 2006
Hitch Type: Three-Point Hitch
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): 684 lbs (at ends)
Operator Station Type: Open, Cab (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
