Kubota BX1850

Last Updated: June 2024

Overview

The Kubota BX1850 is a 4WD compact utility tractor from the BX50 series, manufactured by Kubota between 2006 to 2008. This model is outfitted with a 0.7 L, 719 cm2 (43.9 cu·in) three-cylinder diesel engine, generating 18 hp at 3200 rpm. It features hydrostatic power steering for easy maneuverability, an infinite (2-range) hydrostatic transmission allowing smooth operation, and a wet disc braking system for reliability. The BX1850 boasts a Category 1 three-point hitch with a lift capacity of 992 lbs at the hitch ends, suitable for a range of attachments. Additionally, its open-center hydraulic system and independent PTO support multiple implements, enhancing its versatility in various work conditions.

Key Specifications

Category: Utility

Power Output: 18

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1,255

Fuel Type: Diesel

Image Gallery

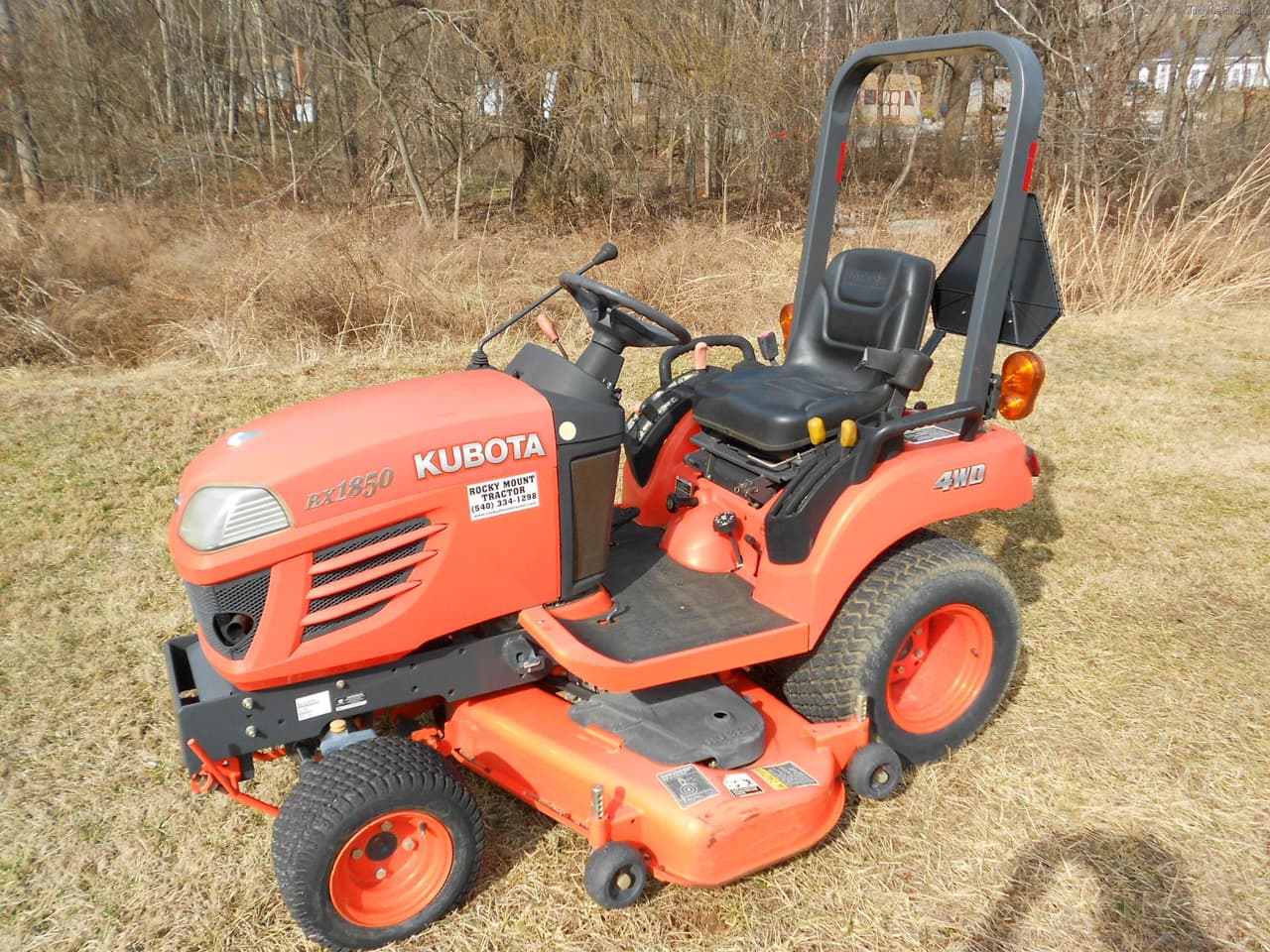

Kubota BX1850 Tractor

Kubota BX1850 vs. Similar Tractors

Power Output

Poor

Greater than 7% of similar tractors.

Hitch Capacity

Below Average

Greater than 19% of similar tractors.

Operating Weight

Poor

Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D722
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 43.9
Bore (in): 2.64
Stroke (in): 2.68
Rated RPM: 3200
Power Output (hp): 18

Transmission

Type: Hydrostatic
Forward Gears: Infinite (2-range)
Reverse Gears: Infinite (2-range)
Total Gears: -

Dimensions

Length (in): 91.7
Width (in): 44.5
Height (in): 69.3
Operating Weight (lb): 1,255

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2500 (Middle PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 3.06
Front Tire Diameter (in): 16 (Lawn/turf)
Front Tire Width (in): 7.5 (Lawn/turf)
Rear Tire Diameter (in): 24 (Lawn/turf)
Rear Tire Width (in): 12 (Lawn/turf)
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 2008
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): 992 lbs (at ends)
Operator Station Type: Two-post fixed ROPS, Canopy (optional)
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Open Center
