Kubota B7200

Last Updated: June 2024

Overview

The Kubota B7200 is a compact utility tractor available in 2WD (B7200E) and 4WD (B7200D) versions. Manufactured by Kubota in Japan from 1983 to 1990, it features a Kubota D950-LA three-cylinder diesel engine with a displacement of 56.6 cubic inches and power output of 17 horsepower at 2500 RPM. This tractor operates with a gear type transmission that has 6 forward and 2 reverse gears, or an optional hydrostatic transmission with infinite forward and reverse gears. It comes with an open operator station complimented by a two-post ROPS for safety. The B7200's braking system uses dry internal expanding brakes, and it has a rear three-point hitch of category I with a lift capacity of 1036 pounds. Other notable features include a 15.0 liters fuel tank capacity and a hydraulic system with an open center design providing a total flow of 15.1 lpm.

Key Specifications

Category: Utility

Power Output: 17

Transmission: Gear type with dry disc clutch or hydrostatic

Drive Type: 2WD or MFWD

Operating Weight: 1113-1356

Fuel Type: Diesel

Image Gallery

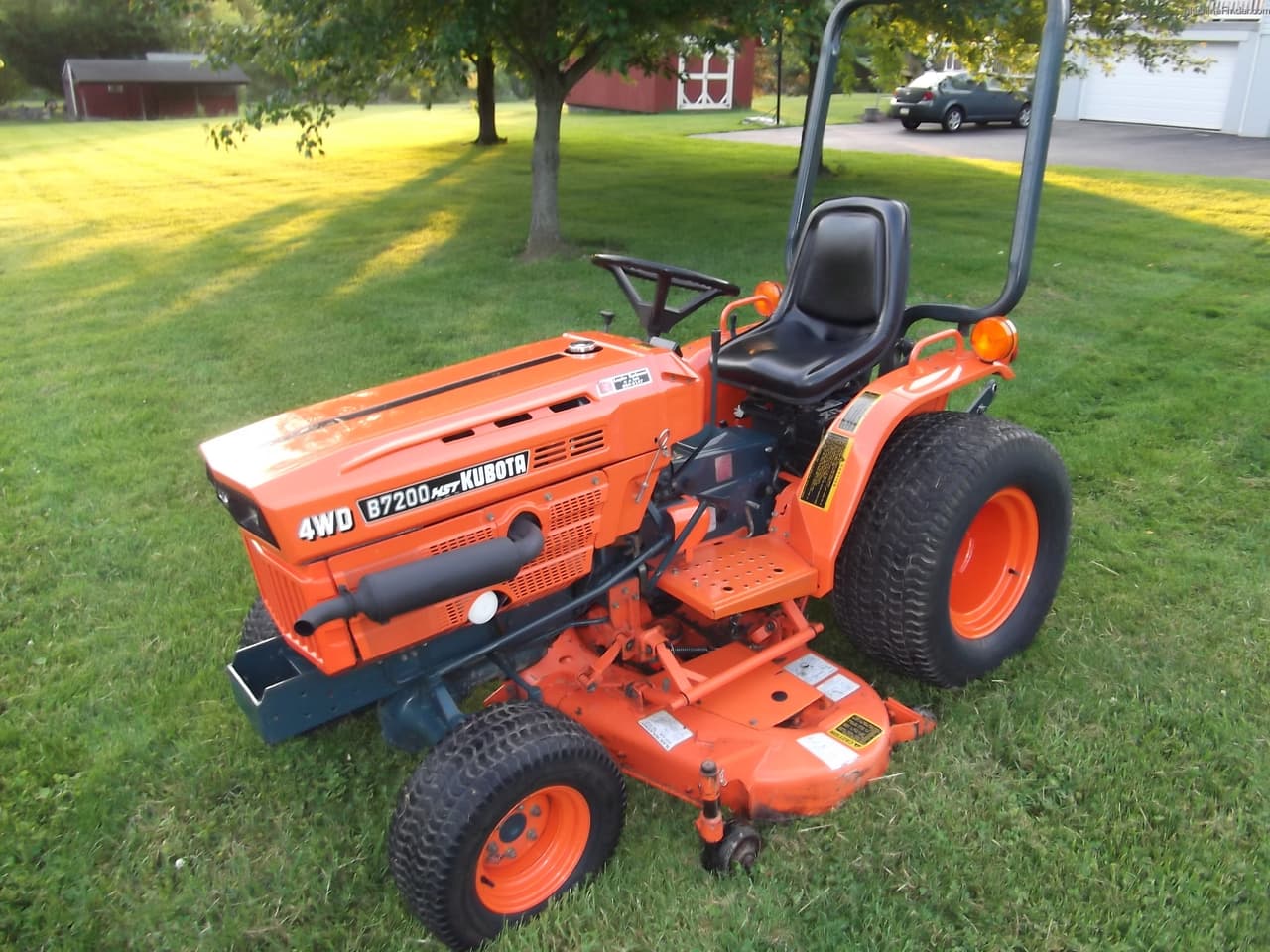

Kubota B7200 Tractor

Kubota B7200 vs. Similar Tractors

Power Output

Poor

Greater than 6% of similar tractors.

Hitch Capacity

Below Average

Greater than 19% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D950-LA
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 56.6
Bore (in): 2.95
Stroke (in): 2.76
Rated RPM: 2500
Power Output (hp): 17

Transmission

Type: Gear type with dry disc clutch or hydrostatic
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 100
Width (in): 37
Height (in): 71.5
Operating Weight (lb): 1113-1356

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540/825
PTO Speed 2 (rpm): 2500
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or MFWD
Steering Type: Ball screw type
Coolant Capacity (qts): 3
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag or Lawn/turf
Manufacture - End Year: 1990
Hitch Type: Three-Point Hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 1036
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Dry internal expanding
Hydraulic System Type: Open center
