Kubota B6200HST

Last Updated: June 2024

Overview

The Kubota B6200 is a versatile and durable compact utility tractor that serves well in a variety of roles from lawn care to farming operations. It was manufactured in Japan from 1983 to 1992, offered in both two-wheel and four-wheel drive configurations. Equipped with the capable Kubota D850 engine, the B6200HST boasts an efficient hydrostatic transmission with two ranges for forward and reverse travel. The liquid-cooled, three-cylinder diesel engine packs a reasonable 15 horsepower while maintaining maneuverability and ease of operation, especially with its manual steering and a practical internal expanding brake system. The tractor's open operator station ensures accessible and comfortable seating for long working hours. With lift capacities on the lower end for compact tractors, it nonetheless delivers consistent performance for various applications.
Show more...

Key Specifications

Category: Utility

Power Output: 15

Transmission: Hydrostatic

Drive Type: 2WD and 4WD available (Hi-Low gear shift)

Operating Weight: 1,190

Fuel Type: Diesel

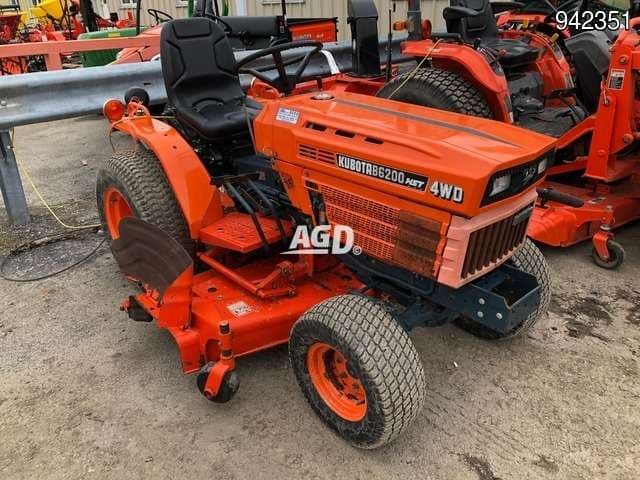

Image Gallery

Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor Kubota B6200HST Tractor

Kubota B6200HST vs. Similar Tractors

Power Output
Poor
Greater than 3% of similar tractors.
Hitch Capacity
Poor
Greater than 0% of similar tractors.
Operating Weight
Poor
Greater than 0% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D850-LA-1
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
52.2
Bore (in)
2.83
Stroke (in)
2.76
Rated RPM
-
Power Output (hp)
15

Transmission

Type
Hydrostatic
Forward Gears
2
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
102
Width (in)
44.9
Height (in)
70.9
Operating Weight (lb)
1,190

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
825
PTO Speed 3 (rpm)
2,500

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD and 4WD available (Hi-Low gear shift)
Steering Type
Manual, ball screw type
Coolant Capacity (qts)
2.96
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag and Lawn/Turf Types for both Front and Rear
Manufacture - End Year
1992
Hitch Type
-
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
1,040
Operator Station Type
Open
Starter Type
Electric
Brake Type
Internal Expanding Type
Hydraulic System Type
Open Center
