Kubota B3150

Last Updated: June 2024

Overview

The Kubota B3150 is a compact utility tractor from the B50 series, designed for various tasks from farming to landscaping. Introduced in 2014, the B3150 boasts a 1.5L four-cylinder diesel engine and a hydrostatic transmission with a three-range infinite forward and reverse gear system. Key features include a comfortable open operator station with two-post ROPS or an optional cab for user protection. Its hydraulic system operates at 2347 psi, with a flow rate of 8.7 gpm, complemented by a three-point hitch with a lift capacity of 2139 lbs, hydrostatic power steering, and wet disc brakes. Readily adaptable, the B3150 can support both agricultural and turf tires for a range of ground conditions. The tractor serves as a versatile and durable machine with a compact frame, making it suitable for smaller farms, estates, and specialty farming operations.

Key Specifications

Category: Utility

Power Output: 30.6

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1863 (ROPS) / 2348 (Cab)

Fuel Type: Diesel

Image Gallery

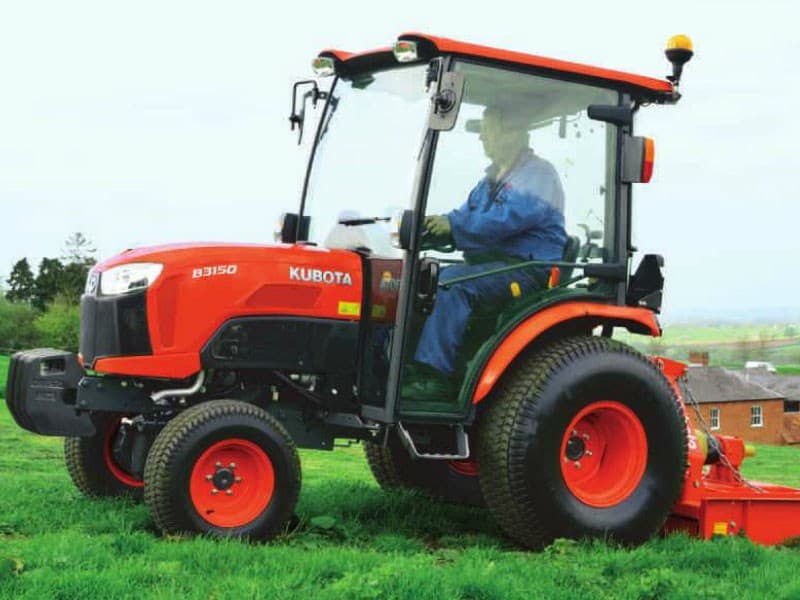

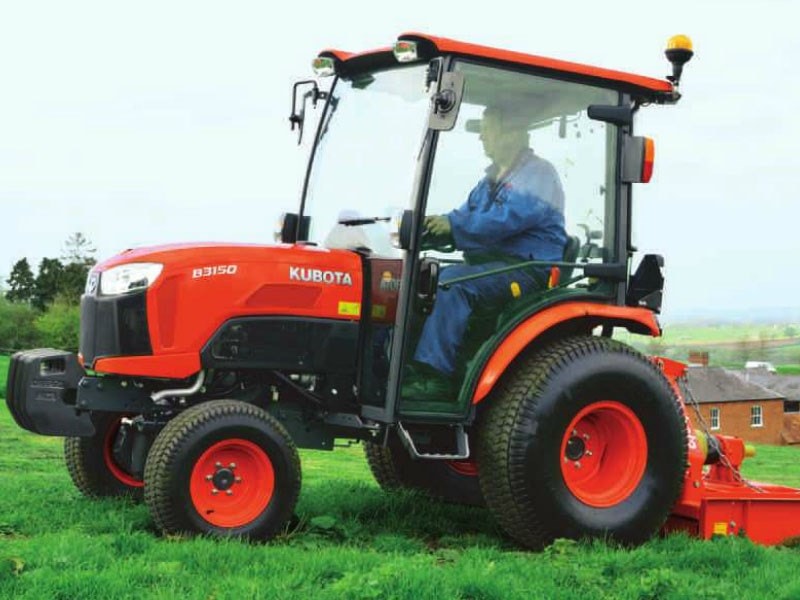

Kubota B3150 Tractor

Kubota B3150 vs. Similar Tractors

Power Output

Below Average

Greater than 26% of similar tractors.

Hitch Capacity

Average

Greater than 37% of similar tractors.

Operating Weight

Above Average

Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V1505-E3 / V1505-T-E3
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 4
Displacement (ci): 91.4
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2500
Power Output (hp): 30.6

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 101.2 (ROPS) / 103.9 (Cab)
Width (in): 53.7
Height (in): 88.4 (ROPS) / 84.3 (Cab)
Operating Weight (lb): 1863 (ROPS) / 2348 (Cab)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2500 (Mid PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 4.54 (for V1505-E3) / 5.71 (for V1505-T-E3)
Front Tire Diameter (in): Unknown (but available sizes are Ag: 7-12, Lawn/turf: 24x8.50-12)
Front Tire Width (in): -
Rear Tire Diameter (in): Unknown (but available sizes are Ag: 12.4-16, Lawn/turf: 13.6-16)
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag, Lawn/turf
Manufacture - End Year: -
Hitch Type: Three-point
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 2139
Operator Station Type: Open with ROPS / Cab (option)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
