Kubota B3030HSD

Last Updated: June 2024

Overview

The Kubota B3030HSD is a utility tractor powered by a 30 hp Kubota V1505-E2-D21 four-cylinder diesel engine, with an E-TVCS induction system for reduced emissions. It features a hydrostatic transmission with three forward and reverse gears, powered by a 4WD chassis equipped with power steering. This tractor offers a lift capacity of 1675.6 lbs with its Category I three-point hitch. Operating at a maximum speed of 12.2 mph, it provides a robust performance in a variety of applications. The open operator station and live PTO further support the versatility of the B3030HSD, making it suitable for a wide range of agricultural tasks.

Key Specifications

Category: Utility

Power Output: 30

Transmission: HST (Hydrostatic Transmission)

Drive Type: 4WD

Operating Weight: 1851.9

Fuel Type: Diesel (assumption based on E-TVCS and common industry practice)

Image Gallery

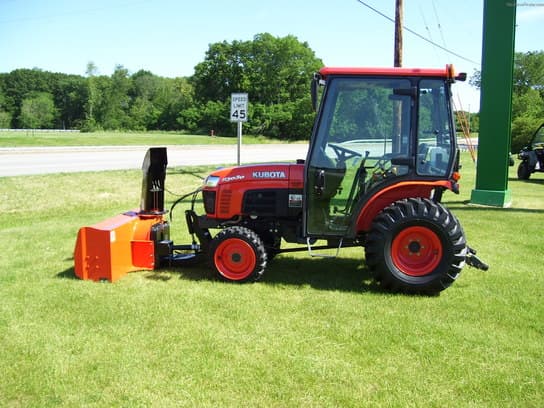

Kubota B3030HSD Tractor

Kubota B3030HSD vs. Similar Tractors

Power Output

Below Average

Greater than 25% of similar tractors.

Hitch Capacity

Average

Greater than 30% of similar tractors.

Operating Weight

Below Average

Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: V1505-E2-D21
Cooling Type: Liquid
Cylinder Orientation: Vertical (assumption based on common tractor design)
Valve Configuration: OHV (assume OHV due to the commonality in modern diesel tractor engines)
Fuel Type: Diesel (assumption based on E-TVCS and common industry practice)
Induction Type: E-TVCS (Emission-reducing technology, likely naturally aspirated with emissions control)
Cylinders: 4
Displacement (ci): 91.5
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 30

Transmission

Type: HST (Hydrostatic Transmission)
Forward Gears: 3
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 99.6 (conversion error in original data, assuming overall length is 99.6 inches instead of the erroneous 8.3 inches)
Width (in): 54 (converted from 4.5 feet to inches)
Height (in): -
Operating Weight (lb): 1851.9

Power Take-Off (PTO)

PTO Type: Live PTO (assumption based on the available PTO power information)
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): 4.8 (Conversion from 1.2 gallons to quarts)
Front Tire Diameter (in): Unknown (tire size provided, but diameter not explicitly given)
Front Tire Width (in): Unknown (tire size reference, 7-12, does not provide width in inches, assumption not made due to variance in tire specifications)
Rear Tire Diameter (in): Unknown (tire size provided, but diameter not explicitly given)
Rear Tire Width (in): Unknown (tire size reference, 12.4-16, does not provide width in inches, assumption not made due to variance in tire specifications)
Front/Rear Rim Diameter (in): Unknown (rim diameter not provided)
Tire Type: Unknown (type of tire not explicitly provided)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (common type for category I hitches)
Hitch Category: I
Hitch Position: Rear (assumption based on standard tractor design)
Hitch Capacity (lb): 1675.6
Operator Station Type: Open (assumption based on model category)
Starter Type: Electric (assumption based on modern tractor standards)
Brake Type: -
Hydraulic System Type: -
