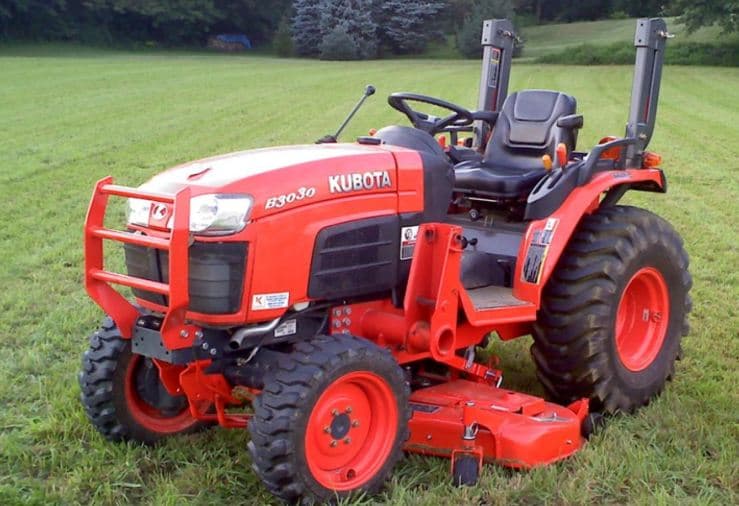

Kubota B3030

Last Updated: September 2024

Overview

The Kubota B3030 is a compact utility tractor that was made from 2007 to 2013. It's a versatile machine with four-wheel drive, making it great for various farm tasks. The tractor has a diesel engine with four cylinders and 29.6 horsepower, which is average for its size. It uses a hydrostatic transmission, which means it's easy to control and can go forward and backward smoothly.

This Kubota tractor has some helpful features for farmers. It has power steering, wet disc brakes, and a three-point hitch at the back that can lift up to 2,140 pounds. The hitch capacity is above average, which is good for attaching and lifting heavy tools. The tractor also has a PTO (Power Take-Off) that can run at 540 rpm, useful for powering other farm equipment. Farmers can choose between an open ROPS (Roll-Over Protective Structure) or a cab with air conditioning for comfort. The B3030 is compact, measuring just 53.7 inches wide, so it can fit in tight spaces around the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 30 hp (22.1 kW)

Transmission: Hydrostatic

Drive Type: 4WD

Fuel Type: Diesel

Kubota B3030 vs. Similar Tractors

Power Output

The Power Output for the Kubota B3030 is Below Average. It is greater than 24% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota B3030 is Below Average. It is greater than 22% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Kubota B3030 is Above Average. It is greater than 77% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
V1505-E2-D21-EU
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
4
Displacement
92 ci (1.5 L)
Bore
3.07 in (78.0 mm)
Stroke
3.09 in (78.5 mm)
Rated RPM
2600
Power Output
30 hp (22.1 kW)

Transmission

Type
Hydrostatic
Total Gears
Infinite (3-range) forward and reverse

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Brake Type
Wet disc
