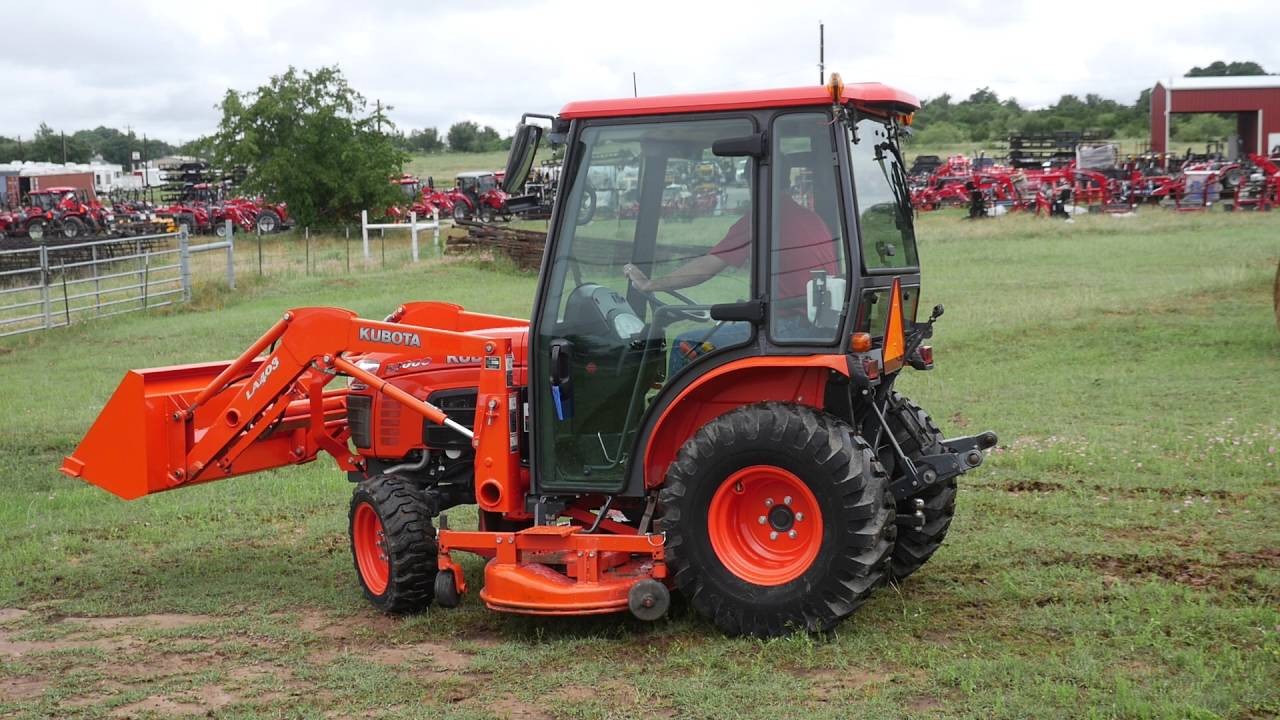

Kubota B3000

Last Updated: June 2024

Overview

The Kubota B3000 is a compact utility tractor that was part of Kubota's renowned B series, manufactured between 2010 and 2013. This model is crafted with a four-wheel drive (4WD) chassis, catering to various tasks with flexibility and power. The heart of the B3000 is a Kubota V1505-E3 diesel engine with a displacement of 91.4 cubic inches, producing 30 horsepower at 2600 RPM. It operates with a hydrostatic transmission that includes infinite (3-range) forward and reverse gears, facilitating smooth maneuverability and efficient operation in diverse working conditions. Standard equipment includes a cab with air-conditioning, power steering, and wet disc brakes—ensuring operator comfort and safety. It has a three-point hitch with a lift capacity of 2139 pounds and PTO speeds of 540 and 2500 RPM, supporting a variety of attachments. The B3000 balances power and precision, designed to handle a wide array of utility tasks on the farm or homestead.
Show more...

Key Specifications

Category: Utility

Power Output: 30

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2271

Fuel Type: Diesel

Kubota B3000 vs. Similar Tractors

Power Output
Below Average
Greater than 25% of similar tractors.
Hitch Capacity
Average
Greater than 37% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
V1505-E3
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
91.4
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2600
Power Output (hp)
30

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
103.9
Width (in)
53.7
Height (in)
84.6
Operating Weight (lb)
2271

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2500
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
5.49
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2013
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
2139
Operator Station Type
Cab standard with air-conditioning
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Open center
