Kubota B2630

Last Updated: June 2024

Overview

The Kubota B2630 is a robust and versatile compact utility tractor designed for a variety of tasks in the small farming, landscaping, and garden maintenance sectors. This model comes with a Kubota D1105-E2-D21 engine which is a 1.1 L, 68.5 cubic-inch, three-cylinder diesel engine offering a power output of 26 hp at 2,800 RPM. It features a hydrostatic transmission with infinite (3-range) forward and reverse speeds, hydrostatic power steering, and wet disc brakes. With a chassis configured as 4x4 MFWD 4WD and a stand-out open operator station with two-post ROPS, the B2630 suits operators looking for a tractor which combines ergonomics with performance. The tractor's production run spanned from 2006 to 2012, marking a period where it was favored for its durability and ease of operation.

Key Specifications

Category: Utility

Power Output: 26

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1786

Fuel Type: Diesel

Image Gallery

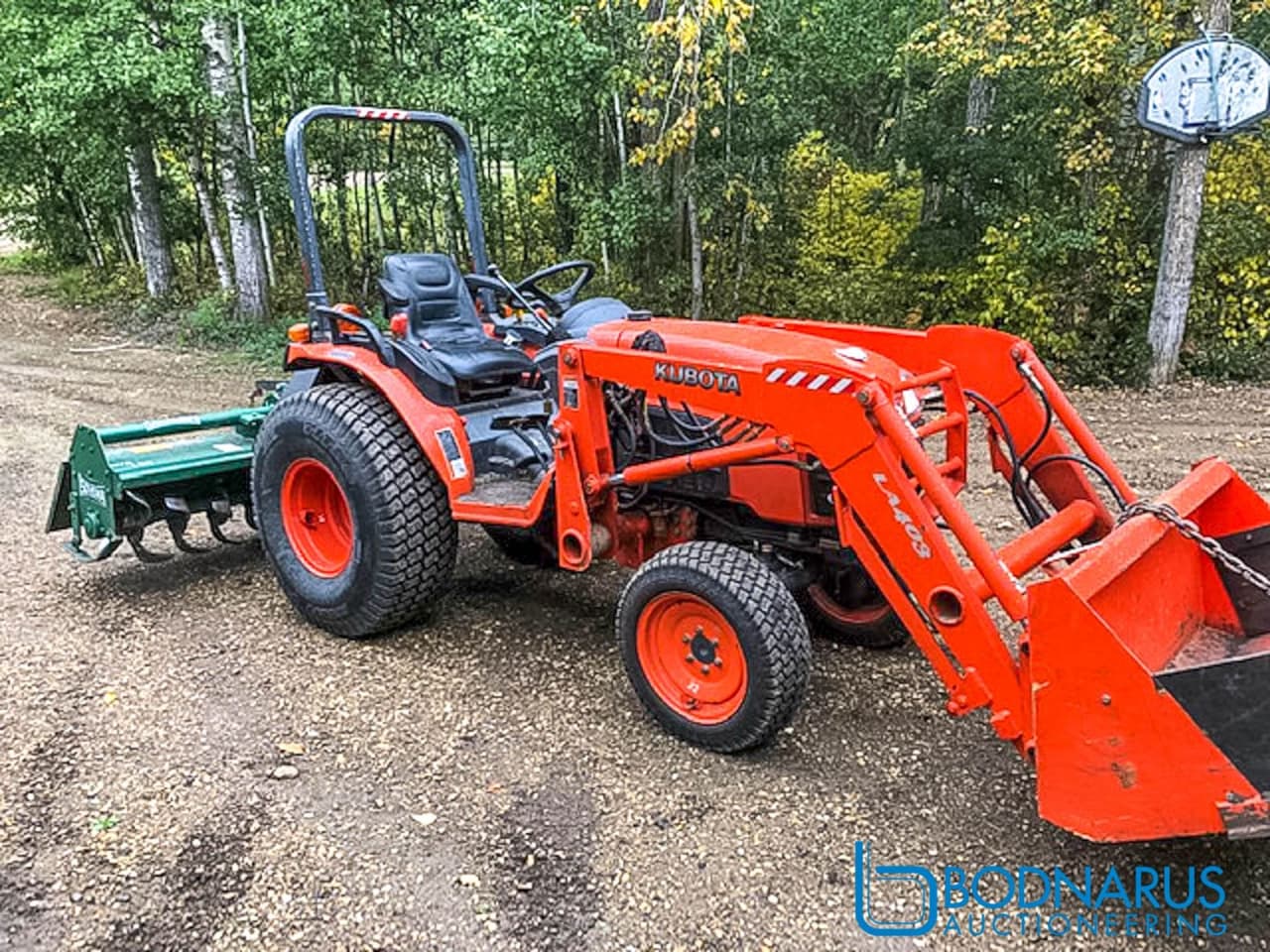

Kubota B2630 Tractor

Kubota B2630 vs. Similar Tractors

Power Output

Below Average

Greater than 20% of similar tractors.

Hitch Capacity

Average

Greater than 37% of similar tractors.

Operating Weight

Below Average

Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1105-E2-D21
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 68.5
Bore (in): 3.071
Stroke (in): 3.087
Rated RPM: 2800
Power Output (hp): 26

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): 98.8
Width (in): 53.5
Height (in): -
Operating Weight (lb): 1786

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 2500 (Middle PTO)
PTO Speed 2 (rpm): 540 (Rear PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 4.23
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2012
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): 2139
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Wet Disc
Hydraulic System Type: Open Center
