Kubota B26

Last Updated: June 2024

Overview

The Kubota B26 is a 4WD backhoe loader tractor from Kubota's B series, manufactured since 2007. It features a Kubota D1105 engine which is a 1.1 L, 1,123 cm², three-cylinder diesel engine with a natural aspiration. The engine's bore and stroke are 78.0 mm and 78.4 mm respectively, and it delivers 26 horsepower at 2,800 rpm. This model is equipped with hydrostatic power steering, wet disc brakes, a four-post ROPS with FOPS canopy standard, and can hold 8.2 US gallons of fuel. The Kubota B26 operates with a hydrostatic transmission offering infinite forward and reverse gears within three ranges. The ROPS canopy ensures operator safety, further complemented by hydrostatic power steering and wet disc brakes for efficient operation and control. The versatility of the Kubota B26 makes it suitable for a variety of tasks in landscaping, construction, and agricultural settings.

Key Specifications

Category: Specialized, Backhoe Loader

Power Output: 26

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2605

Fuel Type: Diesel

Image Gallery

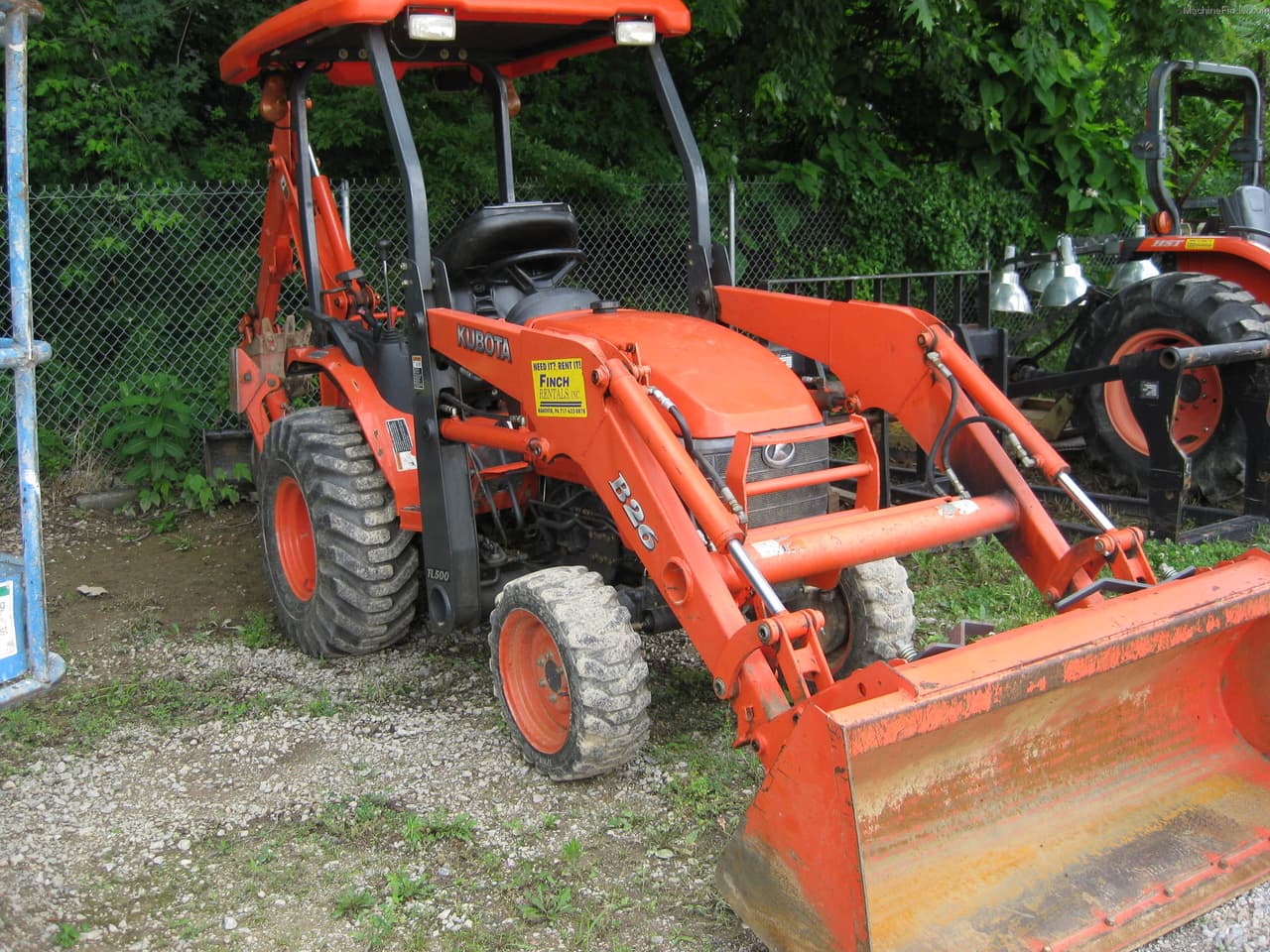

Kubota B26 Tractor

Kubota B26 vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Hitch Capacity

Above Average

Greater than 73% of similar tractors.

Operating Weight

Average

Greater than 49% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1105
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 68.5
Bore (in): 3.07
Stroke (in): 3.09
Rated RPM: 2800
Power Output (hp): 26

Transmission

Type: Hydrostatic
Forward Gears: Infinite (3-range)
Reverse Gears: Infinite (3-range)
Total Gears: -

Dimensions

Length (in): Without 3P: 100.7
Width (in): 53.7
Height (in): 89.5
Operating Weight (lb): 2605

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 4.8
Front Tire Diameter (in): Unknown - Multiple options provided, precise diameter not specified
Front Tire Width (in): 8.50 (Based on tire specification given as 24x8.50-14)
Rear Tire Diameter (in): Unknown - Multiple options provided, precise diameter not specified
Rear Tire Width (in): Rear tires size varies, 13.6 and 12.4 for different tire types, precise width not specified
Front/Rear Rim Diameter (in): Front: 14, Rear: Unknown - Only the front rim diameter can be inferred
Tire Type: Multiple options – Lawn/Turf and Industrial
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 2139
Operator Station Type: Four-post ROPS with FOPS canopy
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
