Kubota B2530

Last Updated: June 2024

Overview

The Kubota B2530 is a 4WD compact utility tractor from the B30 series, produced by Kubota between 2007 and 2013. It features a 1.1 L three-cylinder Kubota D1105-E2-D21-EU diesel engine with either a 9-speed manual shuttle transmission or a 3-range hydrostatic transmission. The engine is rated at 24.7 hp with an RPM ceiling of 2700. It's designed with hydrostatic power steering, wet disc brakes, and a choice of open operator station with two-post ROPS or an air-conditioned cabin. The tractor’s rear three-point hitch is a Category 1 with a lift capacity of 2140 lbs. It can be fitted with various tire options according to its intended use. This tractor is suitable for a variety of tasks in gardens, orchards, or small farms, with its compact dimensions providing convenience for maneuvering in tight spaces.

Key Specifications

Category: Utility

Power Output: 24.7 hp

Transmission: Gear Shift / Hydrostatic

Drive Type: 4WD

Operating Weight: 1598 (ROPS Gear) / 2116 (Cabin Hydro)

Fuel Type: Diesel

Image Gallery

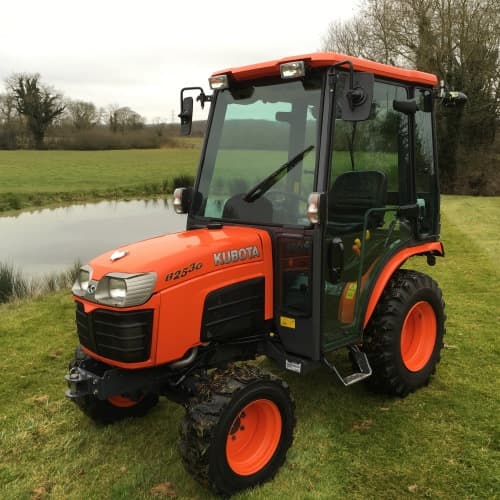

Kubota B2530 Tractor

Kubota B2530 vs. Similar Tractors

Power Output

Below Average

Greater than 17% of similar tractors.

Hitch Capacity

Average

Greater than 37% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1105-E2-D21-EU
Cooling Type: Liquid-Cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated
Cylinders: 3
Displacement (ci): 68.5 ci
Bore (in): 3.07 in
Stroke (in): 3.09 in
Rated RPM: 2700
Power Output (hp): 24.7 hp

Transmission

Type: Gear Shift / Hydrostatic
Forward Gears: 9
Reverse Gears: 9
Total Gears: -

Dimensions

Length (in): 107.7 (ROPS) / 111.6 (Cabin)
Width (in): 43.1
Height (in): 90.2 (ROPS) / 82.3 (Cabin)
Operating Weight (lb): 1598 (ROPS Gear) / 2116 (Cabin Hydro)

Power Take-Off (PTO)

PTO Type: Transmission / Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): 2500 (Middle)

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): 4.8 (ROPS) / 5.5 (Cabin)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/Turf
Manufacture - End Year: 2013
Hitch Type: Three-Point Hitch
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): 2140 lbs
Operator Station Type: Open, ROPS / Cab (Optional)
Starter Type: Electric
Brake Type: Wet Disc
Hydraulic System Type: -
