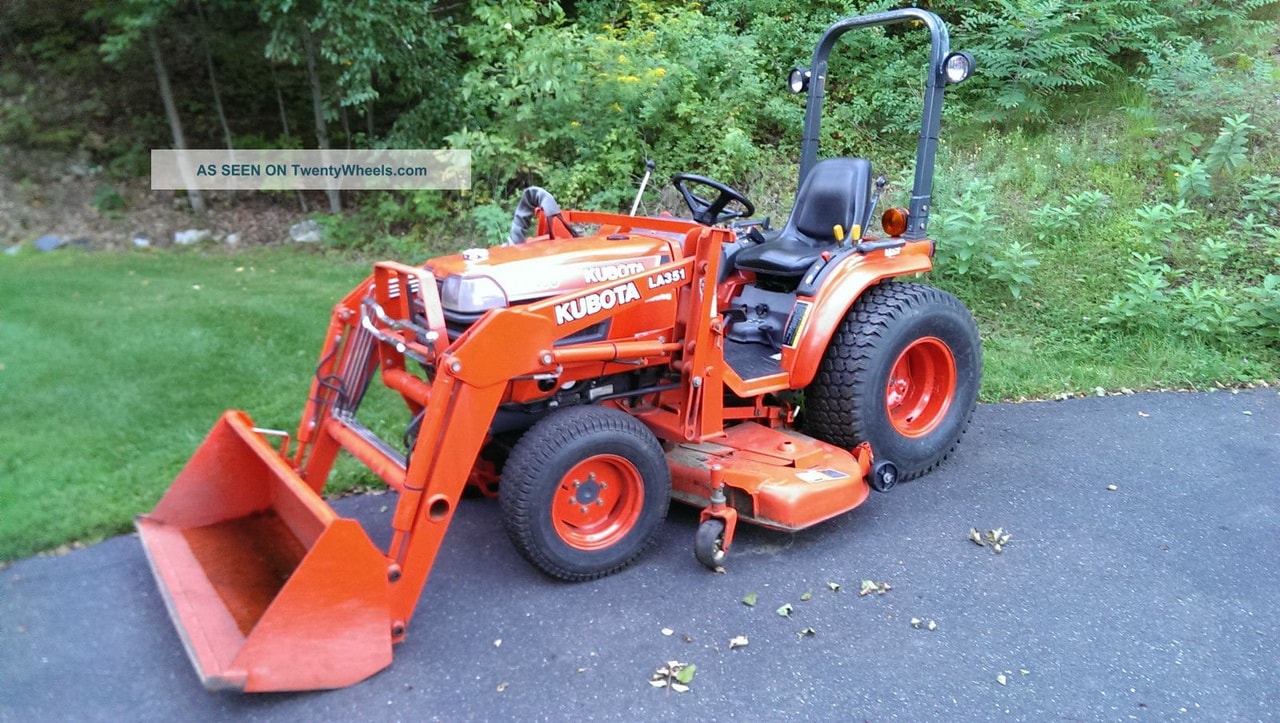

Kubota B2400

Last Updated: June 2024

Overview

The Kubota B2400 utility tractor used the D1105-D10 engine. It is a three-cylinder, naturally aspirated diesel engine with a displacement of 68.5 cubic inches, featuring a bore and stroke of 3.07 inches and 3.09 inches respectively. This engine generates 24 horsepower and is liquid-cooled. The B2400 operates with a hydrostatic transmission and includes infinite (2-range) forward and reverse gears. Key features include integral type power steering, wet disk brakes, and an operating weight of 1570 pounds. The operator station is an open type with a two-post ROPS, catering to a variety of agricultural duties with ease. The tractor has a three-point hitch system and a category I hitch type with a hitch lift capacity of 1280 pounds. The B2400 was manufactured by Kubota from 1995 to 1999.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1570

Fuel Type: Diesel

Image Gallery

Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor Kubota B2400 Tractor

Kubota B2400 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1105-D10
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
68.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2600
Power Output (hp)
24

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
91.7
Width (in)
46.3
Height (in)
77.4
Operating Weight (lb)
1570

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
2537 (Mid-PTO)

Miscellaneous

Chassis
4x2 2WD/4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Integral type power
Coolant Capacity (qts)
3.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1999
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
1280 lbs
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
Wet disk
Hydraulic System Type
Open center
