Kubota B2320

Last Updated: June 2024

Overview

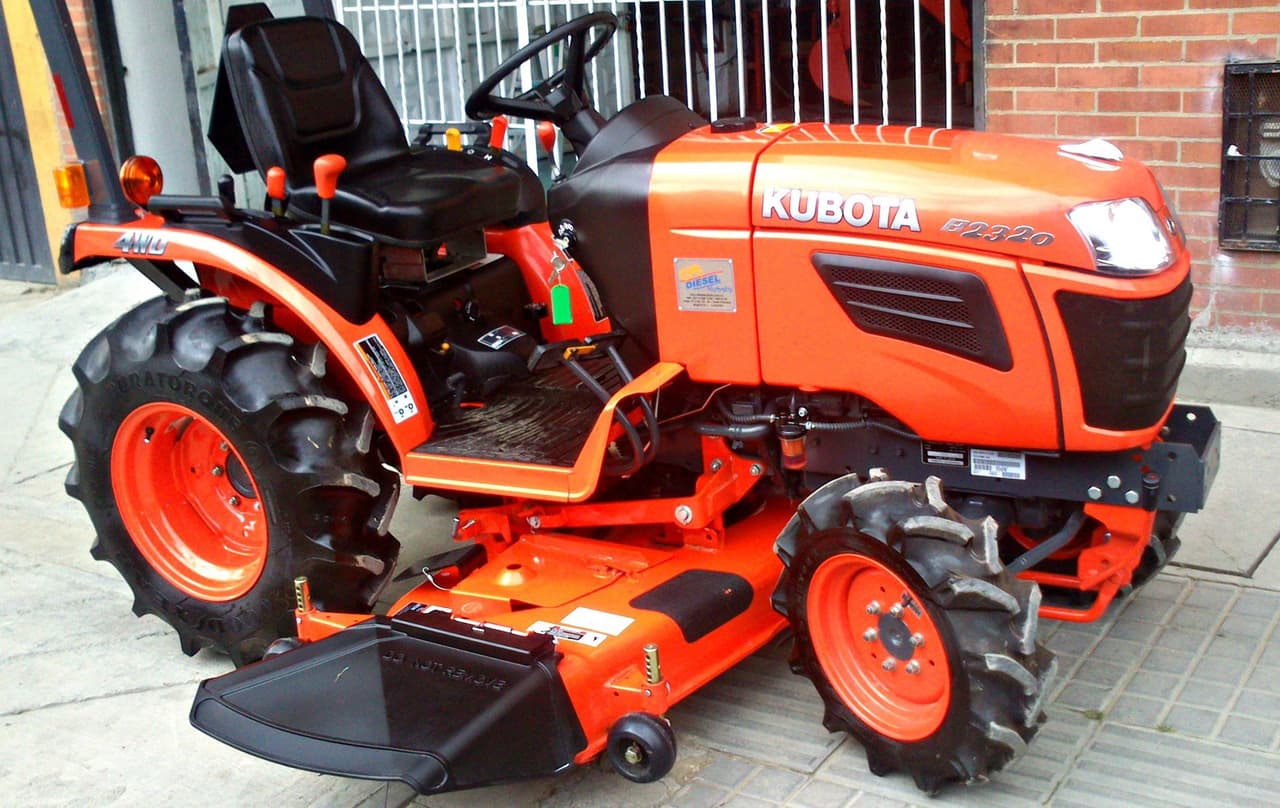

The Kubota B2320 compact utility tractor from the B2x20 series, manufactured from 2008 to 2015, comes with a robust Kubota D1005 three-cylinder diesel engine with a displacement of 61.1 cubic inches, delivering a power output of 20.9 horsepower at 2800 RPM. It is available with either a 9-speed gear shift transmission or a hydrostatic transmission, each providing varying speed ranges. The tractor includes a Category I three-point hitch with a lift capacity of 1356 lbs. Designed for a variety of tasks, the B2320 is outfitted with integral type power steering for ease of handling, and wet disc brakes ensure reliable stopping power. The open operator station comes equipped with a two-post ROPS for safety, and the tractor has a weight range of 1433 to 1477 pounds, with an overall length of 93.9 inches, a width of 45.1 inches, and a height of 83.9 inches. Fuel capacity of 6.9 gallons and coolant capacity of 4.12 quarts are further specifications of this versatile utility tractor that can be fitted with attachments for different agricultural needs.
Show more...

Key Specifications

Category: Utility

Power Output: 20.9

Transmission: Gear Shift with Dry Single Plate Type Clutch; Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 1477 (Gear), 1433 (Hydro)

Fuel Type: Diesel

Kubota B2320 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Hitch Capacity
Below Average
Greater than 25% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005-E4-D22
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
61.1
Bore (in)
2.99
Stroke (in)
2.87
Rated RPM
2800
Power Output (hp)
20.9

Transmission

Type
Gear Shift with Dry Single Plate Type Clutch; Hydrostatic
Forward Gears
9 (Gear Shift), 3 (Hydrostatic)
Reverse Gears
3 (Gear Shift), 3 (Hydrostatic)
Total Gears
-

Dimensions

Length (in)
93.9
Width (in)
45.1
Height (in)
83.9
Operating Weight (lb)
1477 (Gear), 1433 (Hydro)

Power Take-Off (PTO)

PTO Type
Transmission, Live (Hydrostatic)
PTO Speed 1 (rpm)
540/960 (Rear)
PTO Speed 2 (rpm)
2500 (Middle PTO Speed)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
4.12
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 6-12, Rear: 9.5-16
Manufacture - End Year
2015
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
1356 lbs
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
Open Center
