Kubota B2301HSD

Last Updated: June 2024

Overview

The Kubota B2301HSD is a utility tractor equipped with a 22 hp Kubota D1005 engine, featuring a turbocharger with intercooler and liquid cooling system. This model has a displacement of 61.1 cubic inches with a bore of 3 inches and a stroke of 2.9 inches. An independent PTO with unknown speeds and a three-point hitch with a lift capacity of 1411 pounds are notable aspects of this model. The tractor has a hydrostatic transmission with three ranges. The operating weight is 1565.3 lbs, and it showcases multi-plate wet disc brakes and an open center hydraulic system. Despite the information at hand, specific details like the chassis configuration, PTO speeds, and tire dimensions remain unknown. The narrative encapsulates the tractor’s key features and specifications that are relevant for an owner or operator.
Show more...

Key Specifications

Category: Utility

Power Output: 22

Transmission: HST (3 ranges)

Operating Weight: 1565.3

Fuel Type: Diesel

Lift Capacity: 1411

Image Gallery

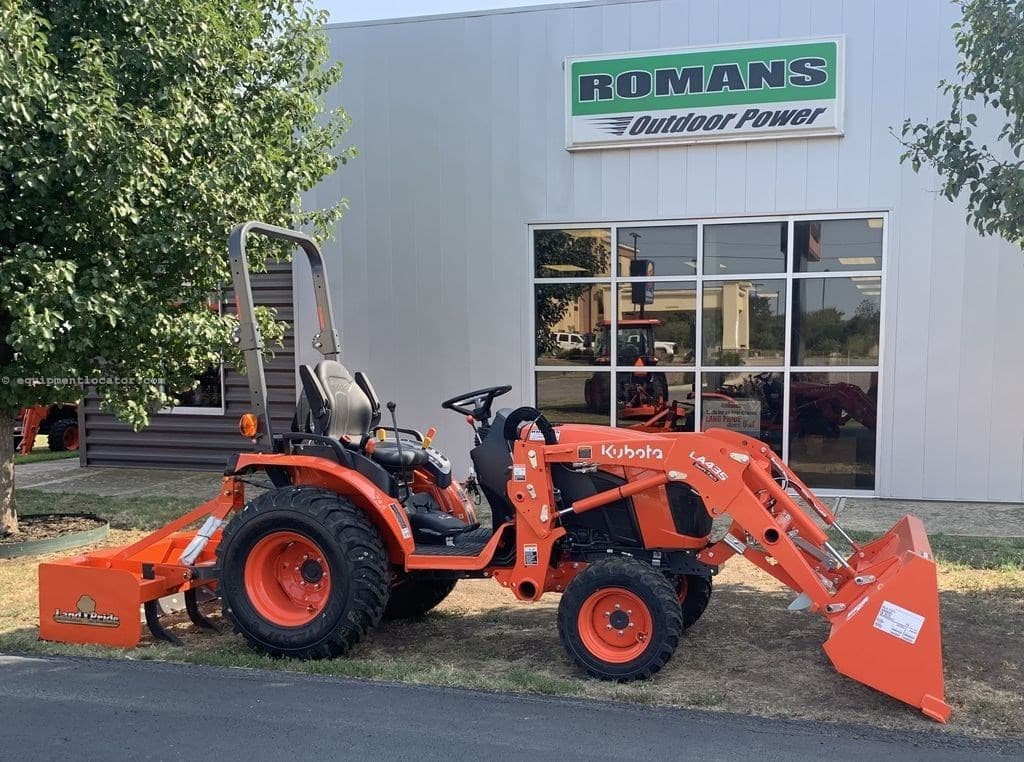

Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor Kubota B2301HSD Tractor

Kubota B2301HSD vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Hitch Capacity
Below Average
Greater than 26% of similar tractors.
Operating Weight
Below Average
Greater than 12% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged with intercooler
Cylinders
3
Displacement (ci)
61.1
Bore (in)
3
Stroke (in)
2.9
Rated RPM
2800
Power Output (hp)
22

Transmission

Type
HST (3 ranges)
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
93.8
Width (in)
45.6 (conversion from 3.8 ft to inches)
Height (in)
84 (conversion from 7 ft to inches)
Operating Weight (lb)
1565.3

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
0.9 gal (Unknown in quarts, assumption: 1 gal≈4 qts, hence 0.9 gal≈3.6 qts but not highly confident)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
1411
Operator Station Type
-
Starter Type
-
Brake Type
Multi-plate wet disc
Hydraulic System Type
Open center
