Kubota B2261

Last Updated: June 2024

Overview

The Kubota B2261 is a 4WD compact utility tractor from the B2 series, produced by the Kubota from 2018. This tractor is powered by a 1.3 L, 1,261 cm2, (77 cu·in) three-cylinder diesel engine. It comes with two transmission options: gear type with 9 forward and 9 reverse gears, or a hydrostatic transmission with infinite (3-range) forward and reverse speeds. It's equipped with power steering, wet disc brakes, and can be fitted with either an open operator station with two-post ROPS or a cabin with a full set of controls. It offers a fuel capacity of 27.0 liters and runs on either Ag or Lawn/turf tires, depending on requirements. The tractor is versatile and easily adaptable to a range of tasks, offering reliability and performance.

Key Specifications

Category: Utility

Power Output: 25.6

Transmission: Gear type / Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: ROPS: 1830 - 2414 / Cab: Unknown

Fuel Type: Diesel

Image Gallery

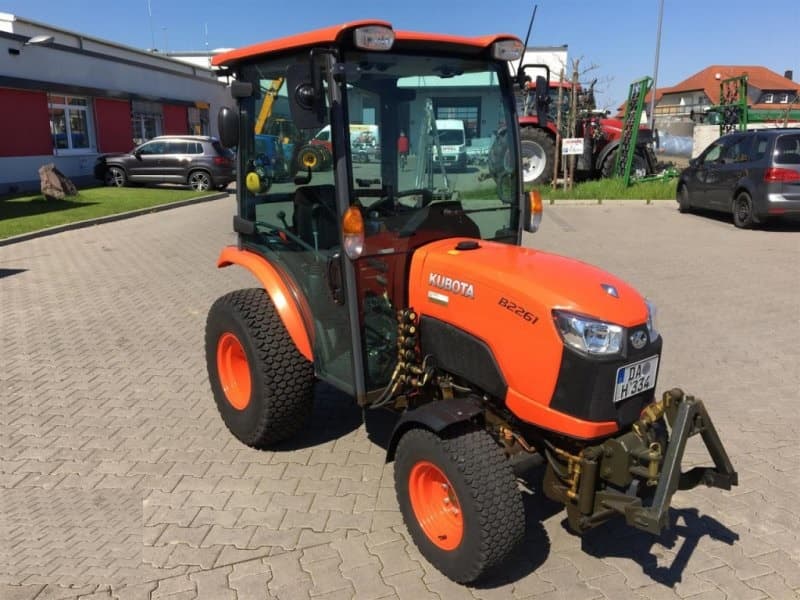

Kubota B2261 Tractor

Kubota B2261 vs. Similar Tractors

Power Output

Below Average

Greater than 19% of similar tractors.

Hitch Capacity

Average

Greater than 37% of similar tractors.

Operating Weight

Above Average

Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D1305
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 3
Displacement (ci): 77
Bore (in): 3.07
Stroke (in): 3.46
Rated RPM: 2500
Power Output (hp): 25.6

Transmission

Type: Gear type / Hydrostatic
Forward Gears: 9 (Gear type) / Infinite (3-range) (Hydrostatic)
Reverse Gears: 9 (Gear type) / Infinite (3-range) (Hydrostatic)
Total Gears: -

Dimensions

Length (in): ROPS: 107.5 / Cab: 113.7
Width (in): 48.6
Height (in): ROPS: 92.6 / Cab: 83.1
Operating Weight (lb): ROPS: 1830 - 2414 / Cab: Unknown

Power Take-Off (PTO)

PTO Type: Independent / Optional Middle PTO
PTO Speed 1 (rpm): 540 / 2500 (Middle PTO)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown for Ag tires / 24 for Lawn/turf tires
Front Tire Width (in): Unknown for Ag tires / 8.50 for Lawn/turf tires
Rear Tire Diameter (in): Unknown for Ag tires / Unknown for Lawn/turf tires
Rear Tire Width (in): Unknown for Ag tires / Unknown for Lawn/turf tires
Front/Rear Rim Diameter (in): -
Tire Type: Ag / Lawn/turf
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 2140
Operator Station Type: Open with ROPS / Cab
Starter Type: Electric
Brake Type: Multi plate wet disc
Hydraulic System Type: Open center
