Kubota B1600

Last Updated: June 2024

Overview

The Kubota B1600 is a sub-compact utility tractor that was produced by Kubota from 1979 to 1982. It is powered by a 20 hp (14.9 kW) Kubota D950 liquid-cooled, three-cylinder diesel engine with a displacement of 56.6 cubic inches. It features an unsynchronized gear transmission with 12 forward and 4 reverse gears and a manual steering system. The tractor has a wheelbase of 53.1 inches and an operating weight of 1,410 lbs. It is outfitted with an open operator station with ROPS, ball screw-type steering, and independent right/left brakes with a connection system. The B1600 supports front tires sized 5.00-12 and rear tires sized 8.3-22. It was manufactured in a 2WD variant with a Category I hitch. The tractor's dimensions are 95.3 inches in length, 42.9 inches in width, and 74.8 inches in height.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 20

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 1410

Fuel Type: Diesel

Image Gallery

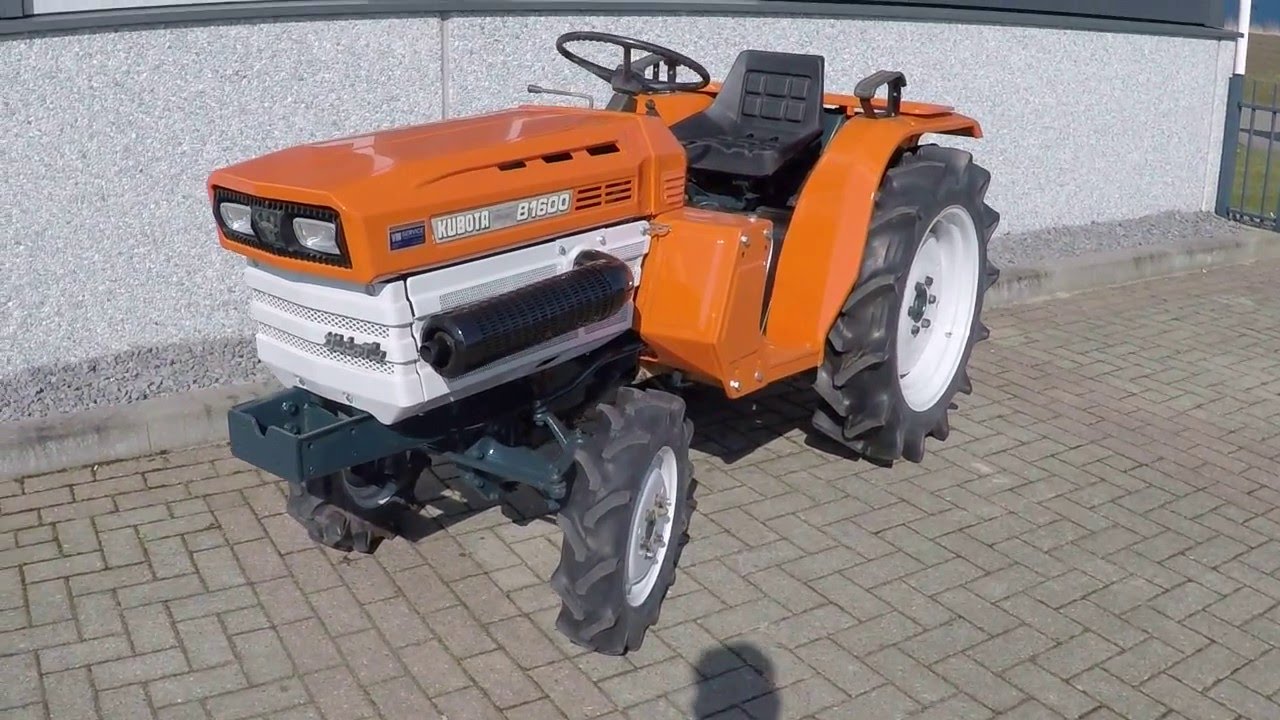

Kubota B1600 Tractor

Kubota B1600 vs. Similar Tractors

Power Output

Poor

Greater than 10% of similar tractors.

Operating Weight

Below Average

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D950
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 56.6
Bore (in): 2.95
Stroke (in): 2.76
Rated RPM: 2600
Power Output (hp): 20

Transmission

Type: Unsynchronized gear
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 95.3
Width (in): 42.9
Height (in): 74.8
Operating Weight (lb): 1410

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 860
PTO Speed 3 (rpm): 1000

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 3.59
Front Tire Diameter (in): 12
Front Tire Width (in): -
Rear Tire Diameter (in): 22
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1982
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station with ROPS
Starter Type: Electric
Brake Type: Independent right/left with connection system
Hydraulic System Type: -
