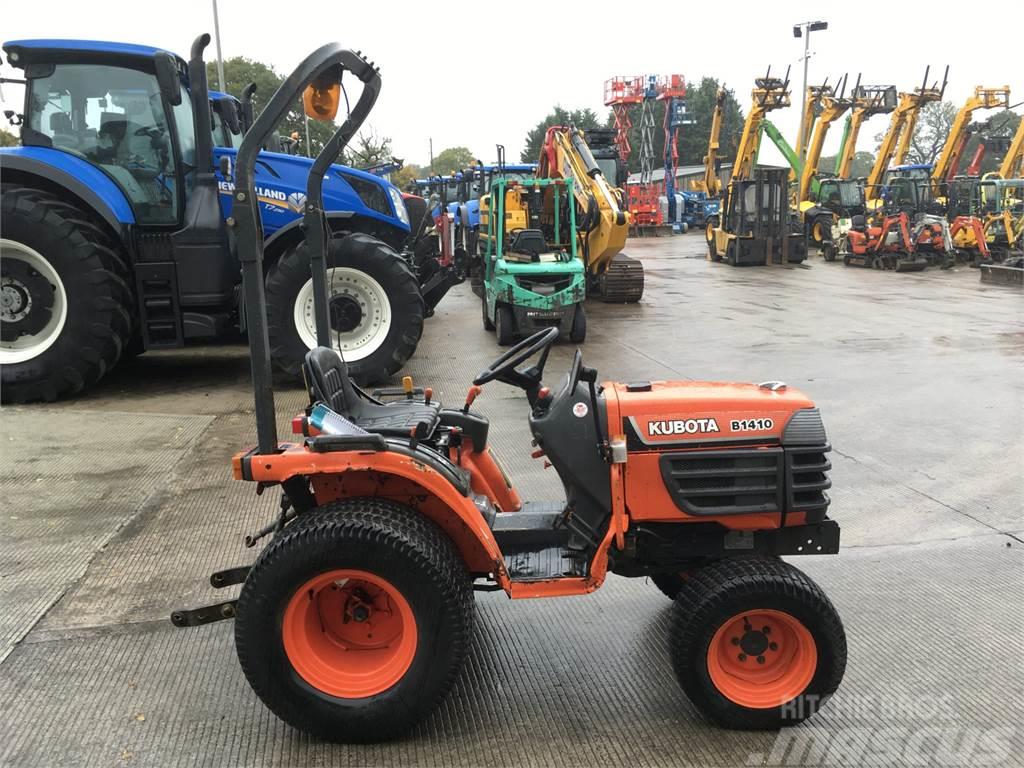

Kubota B1410

Last Updated: September 2024

Overview

The Kubota B1410 is a small but capable utility tractor. It's a sub-compact model with four-wheel drive, perfect for light farm work and yard tasks. This tractor has a manual steering system and a manual transmission with 6 forward gears and 2 reverse gears.

Under the hood, the B1410 has a Kubota D662 engine. It's a 3-cylinder diesel engine that's liquid-cooled and naturally aspirated. The engine puts out 13.8 hp, which is on the lower end for tractors but suitable for its size. The tractor is compact, measuring 79.9 inches long, 36.6 inches wide, and 48.4 inches tall. It weighs 1125 lb, making it easy to move around. The B1410 has a three-point hitch that can lift up to 1191 lb, which is about average for its class. It also has two PTO speeds: 540 rpm and 1000 rpm, giving it flexibility for different attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 14 hp (10.3 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1125 lb (510 kg)

Fuel Type: Diesel

Kubota B1410 vs. Similar Tractors

Power Output

The Power Output for the Kubota B1410 is Poor. It is greater than 2% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Kubota B1410 is Poor. It is greater than 1% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Kubota B1410 is Poor. It is greater than 1% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Kubota
Model
D662
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement
40 ci (0.7 L)
Bore
2.52 in (64.0 mm)
Stroke
2.68 in (68.1 mm)
Power Output
14 hp (10.3 kW)

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
2
Total Gears
8

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Manual
Brake Type
Wet disc
