Kubota B1220

Last Updated: June 2024

Overview

The Kubota B1220D is a compact utility tractor that is part of Kubota's B-Series lineup. Strong and versatile, it boasts a 4WD chassis and is powered by the reliable Kubota Z482-D25 engine, a 0.5 L two-cylinder diesel engine with a liquid cooling system. With an engine output of 11.8 HP at 3,100 RPM and a displacement of 29.3 cubic inches, this tractor is well-suited for a variety of tasks. The engine's bore and stroke measurements are 2.64 and 2.68 inches, respectively. It features a gear shift transmission with 6 forward and 2 reverse gears. The B1220D comes with manual steering, wet disc brakes, and an open operator station, which allows for comfortable and straightforward tractor operation. It has a fuel tank capacity of 14.0 liters (3.7 US gal) and an operating weight of 1014 pounds, making it a strong yet relatively lightweight option for those needing a dependable compact tractor.

Key Specifications

Category: Utility

Power Output: 11.8

Transmission: Gearshift with dry single plate type clutch

Drive Type: Four-wheel drive (4WD)

Operating Weight: 1014

Fuel Type: Diesel

Image Gallery

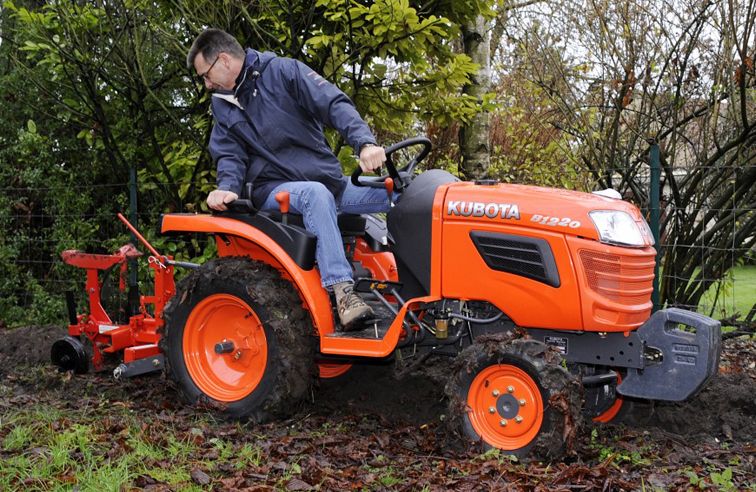

Kubota B1220 Tractor

Kubota B1220 vs. Similar Tractors

Power Output

Poor

Greater than 1% of similar tractors.

Hitch Capacity

Below Average

Greater than 18% of similar tractors.

Operating Weight

Poor

Greater than 7% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: Z482-D25
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural aspiration
Cylinders: 2
Displacement (ci): 29.3
Bore (in): 2.64
Stroke (in): 2.68
Rated RPM: 3100
Power Output (hp): 11.8

Transmission

Type: Gearshift with dry single plate type clutch
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 92.9
Width (in): 36.7
Height (in): 48.6
Operating Weight (lb): 1014

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: Four-wheel drive (4WD)
Steering Type: Manual
Coolant Capacity (qts): 3.59
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): 948
Operator Station Type: Open operator station
Starter Type: Electric
Brake Type: Wet disc type
Hydraulic System Type: Up and down type control valve
