Kubota B1200

Last Updated: June 2024

Overview

The Kubota B1200 is a sub-compact utility tractor which was manufactured between 1979 and 1982. It features a manual steering system and an unsynchronized gear transmission including 6 forward and 2 reverse gears. The 2WD Kubota B1200 is powered by the Kubota D750L engine, this is a liquid-cooled diesel engine with a three-cylinder setup offering 16 horsepower and 46.5 cubic inches of displacement. It has a wheelbase of 49.2 inches, a ground clearance of 8.6 inches, and an operating weight of 1,060 lbs. The front tire size is 5.00-12, while the rear tire size could not be determined from the data provided. The tractor is equipped with a 20.0-liter fuel tank and features an open operator station with ROPS for added safety. The tractor's PTO is capable of operating at three different speeds: 540, 860, and 1000 rpm, making it versatile for various attachments.

Key Specifications

Category: Utility, Sub-Compact

Power Output: 16

Transmission: Unsynchronized Gear

Drive Type: 2WD

Operating Weight: 1060

Fuel Type: Diesel

Image Gallery

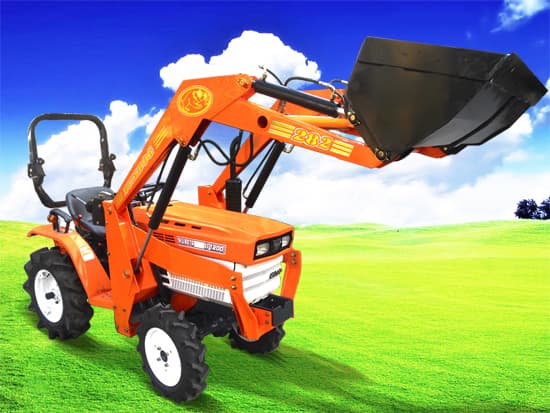

Kubota B1200 Tractor

Kubota B1200 vs. Similar Tractors

Power Output

Poor

Greater than 4% of similar tractors.

Operating Weight

Poor

Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kubota
Model: D750L
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 46.5
Bore (in): 2.68
Stroke (in): 2.76
Rated RPM: 2600
Power Output (hp): 16

Transmission

Type: Unsynchronized Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 84.3
Width (in): 40.6
Height (in): 73.6
Operating Weight (lb): 1060

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 860
PTO Speed 3 (rpm): 1000

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 3.59
Front Tire Diameter (in): 12
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1982
Hitch Type: Category I
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open With ROPS
Starter Type: Electric
Brake Type: Manual External Compression Band
Hydraulic System Type: -
