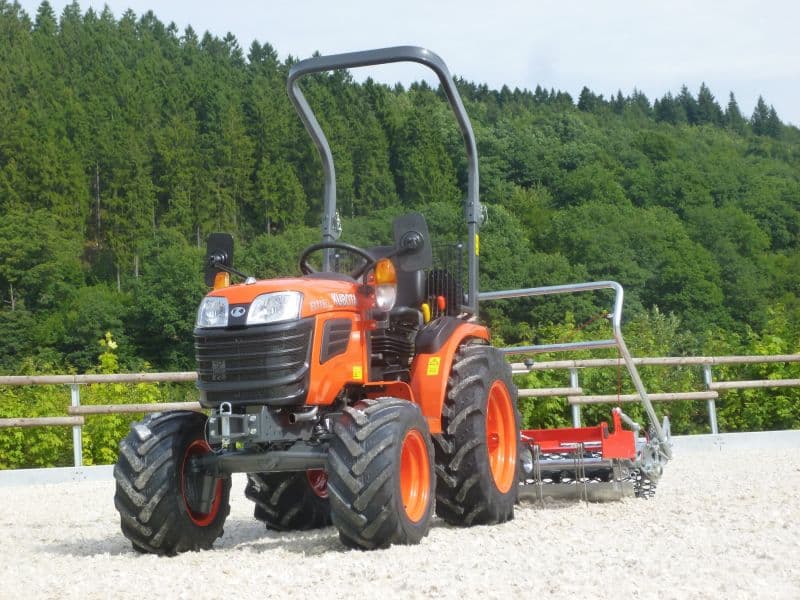

Kubota B1181

Last Updated: June 2024

Overview

The Kubota B1181 is a sub-compact utility tractor that provides versatility for various tasks thanks to its 4WD capability and power steering feature. Designed to operate with a liquid-cooled 0.8 L three-cylinder diesel engine, the B1181 brings a robust performance for its class. This tractor is outfitted with a gear transmission offering 6 forward and 2 reverse speeds, ideal for handling a variety of tasks. The addition of wet disc brakes ensures reliable stopping power. The open operator station, along with a two-post ROPS, underscores the importance of safety while acknowledging the need for visibility and accessibility in different work environments. The tractor's hitch capabilities, along with optional PTO speeds, allow for the use of various implements, expanding the machine's usability beyond basic tasks. Ideal for small properties and light-duty work, the Kubota B1181 combines the compact size with the necessary power for efficient work.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 17.7

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1411

Fuel Type: Diesel

Kubota B1181 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Hitch Capacity
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D782
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
47.5
Bore (in)
2.64
Stroke (in)
2.9
Rated RPM
3000
Power Output (hp)
17.7

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
92.9
Width (in)
36.9
Height (in)
87.3
Operating Weight (lb)
1411

Power Take-Off (PTO)

PTO Type
Optional
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
2500 (Mid PTO)

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power Steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
1190
Operator Station Type
Open with Two-Post ROPS
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
-
