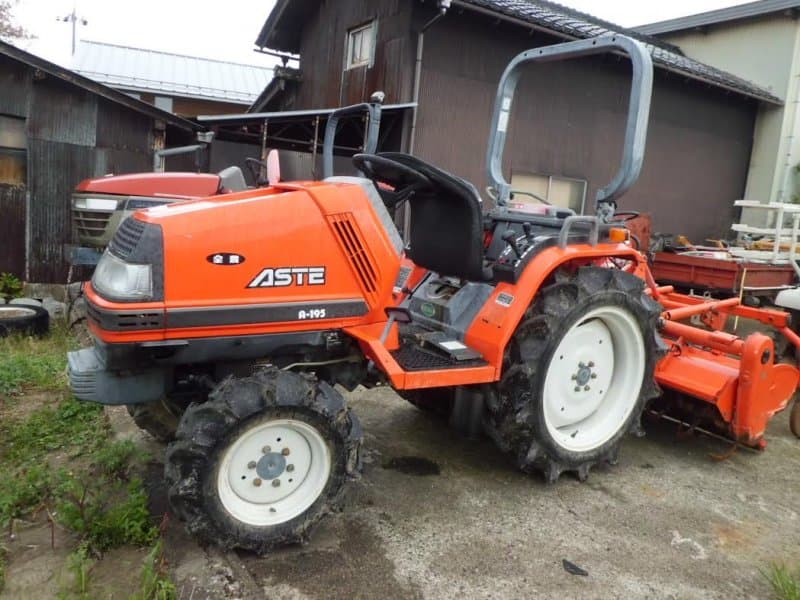

Kubota A-195

Last Updated: June 2024

Overview

The Kubota A-195 tractor, produced from 1992 to 1996, is powered by a 18.7 horsepower Kubota D1105 diesel engine with a displacement of 68.5 cubic inches. It features a liquid-cooled, 3-cylinder engine and operates at a rated RPM of 2650. With a 6 forward and 2 reverse gear transmission, the Kubota A-195 is capable of handling a variety of tasks. The tractor measures 99.8 inches in length, 41.3 inches in width, and has a height of 72.8 inches, supported by a wheelbase of 53.2 inches. It weighs in at 1532 lbs and has a ground clearance of 12.2 inches, which is suitable for diverse agricultural operations. The standard tire configuration is 6-12 for the front and 8.3-20 for the rear, complementing the tractor's sturdy build. Specific details about the tractor's hitch type and hydraulics are not specified, implying an assumption cannot be made reliably. This model, being part of the Aste Series, is likely designed for a range of utility purposes within a small farm or estate setting.
Show more...

Key Specifications

Power Output: 18.7

Operating Weight: 1532

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1105
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
68.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2650
Power Output (hp)
18.7

Transmission

Type
-
Forward Gears
6
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
99.8
Width (in)
41.3
Height (in)
72.8
Operating Weight (lb)
1532

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
