Kubota A-175

Last Updated: June 2024

Overview

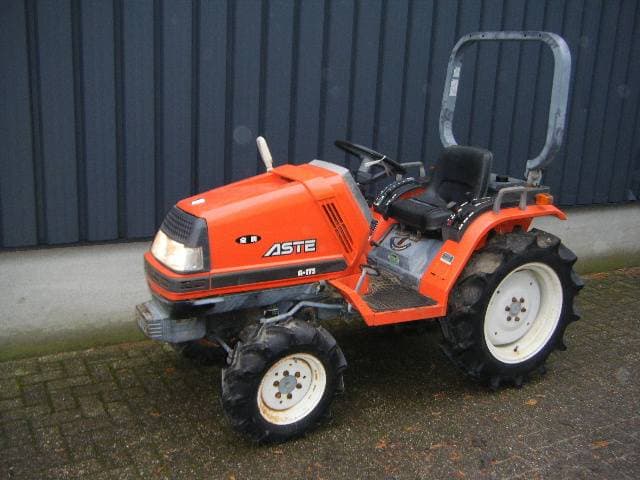

The Kubota A-175 is a sub-compact utility tractor that was part of the Aste series. Manufactured by Kubota between 1992 and 1996, the A-175 model features a Kubota D1005 three-cylinder diesel engine, a liquid-cooled natural aspiration system, and a 4x4 MFWD 4WD chassis. This tractor is well-suited for a variety of tasks around small farms and estates thanks to its 6-speed transmission with 6 forward and 2 reverse gears, and 17.3 horsepower engine power output. Despite its small frame, the A-175 has a solid build with a weight of 1,510 lbs and dimensions measuring 99.8 inches in length, 41.3 inches in width, and 71.9 inches in height. Additional attributes include an operating 540 rpm rear PTO and an open operator station complemented by a two-post ROPS, making it a practical choice for those who need a reliable and easy-to-operate machine.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 17.3

Drive Type: 4WD

Operating Weight: 1510

Fuel Type: Diesel

Kubota A-175 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D1005
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
61.1
Bore (in)
2.99
Stroke (in)
2.9
Rated RPM
2650
Power Output (hp)
17.3

Transmission

Type
-
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
99.8
Width (in)
41.3
Height (in)
71.9
Operating Weight (lb)
1510

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
Category 0
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open with two-post ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
