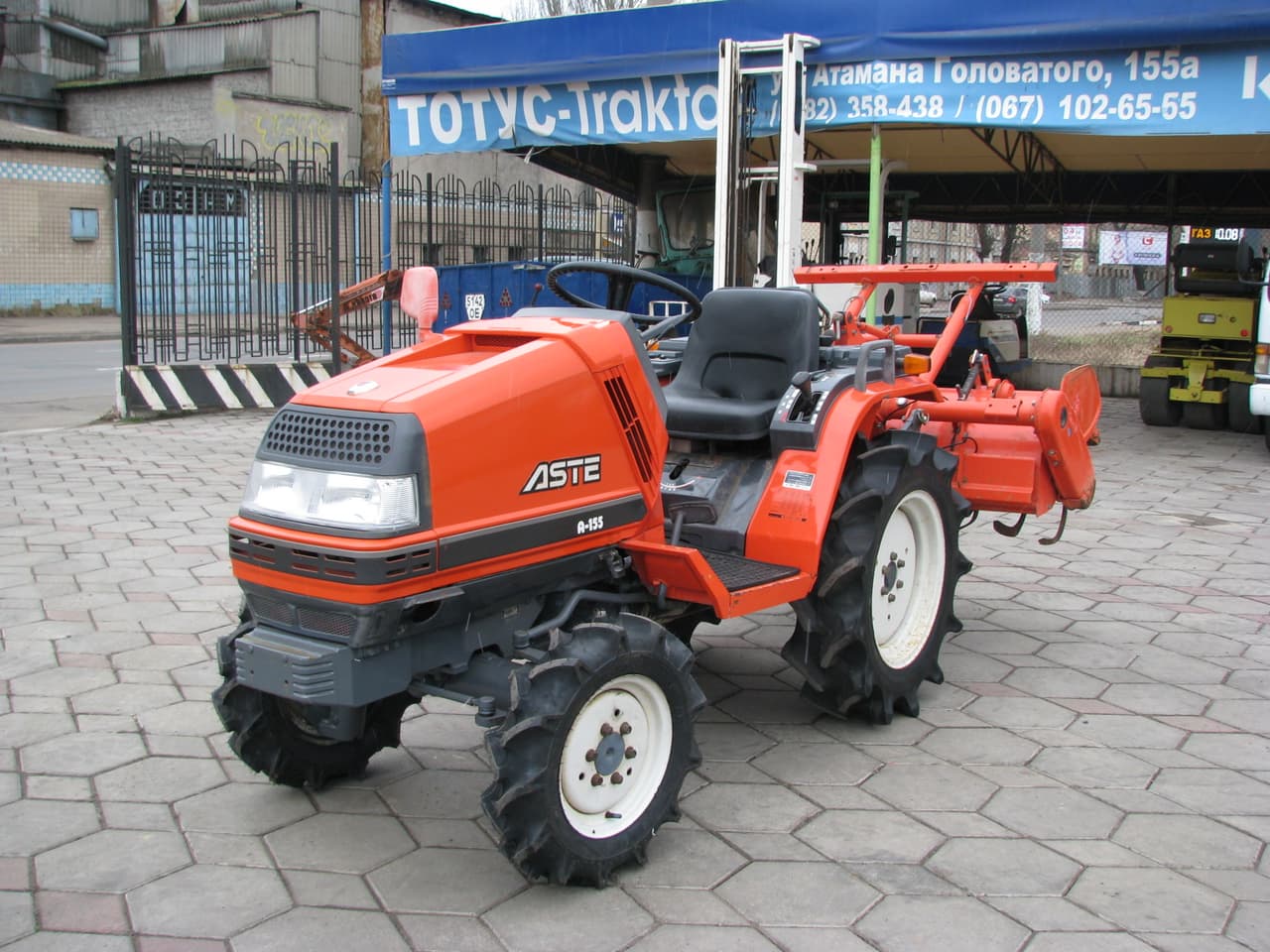

Kubota A-155

Last Updated: June 2024

Overview

The Kubota A-155 is a sub-compact utility tractor that was manufactured by Kubota as part of its Aste series between 1992 and 1996. It features a three-cylinder diesel engine, model Kubota D905, with a displacement of 54.8 cubic inches and a power output of 15.8 horsepower. The tractor is equipped with a liquid-cooling system and operates at a maximum rated RPM of 2650. The manual transmission offers 6 forward and 2 reverse gears, providing versatility for various tasks. This model operates on a four-wheel-drive chassis (4x4 MFWD 4WD) and comes with standard ag tires. The operating weight of the tractor is 1,466 lbs, and its dimensions include a length of 99.8 inches, a width of 41.3 inches, and a height of 70.9 inches. The operator station is an open type with two-post ROPS for safety. The tractor is also equipped with a standard 540 RPM rear PTO, enabling the use of various implements.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 15.8

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1466

Fuel Type: Diesel

Kubota A-155 vs. Similar Tractors

Power Output
Poor
Greater than 4% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Kubota
Model
D905
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
54.8
Bore (in)
2.83
Stroke (in)
2.9
Rated RPM
2650
Power Output (hp)
15.8

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
99.8
Width (in)
41.3
Height (in)
70.9
Operating Weight (lb)
1466

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
0
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station with two-post ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
