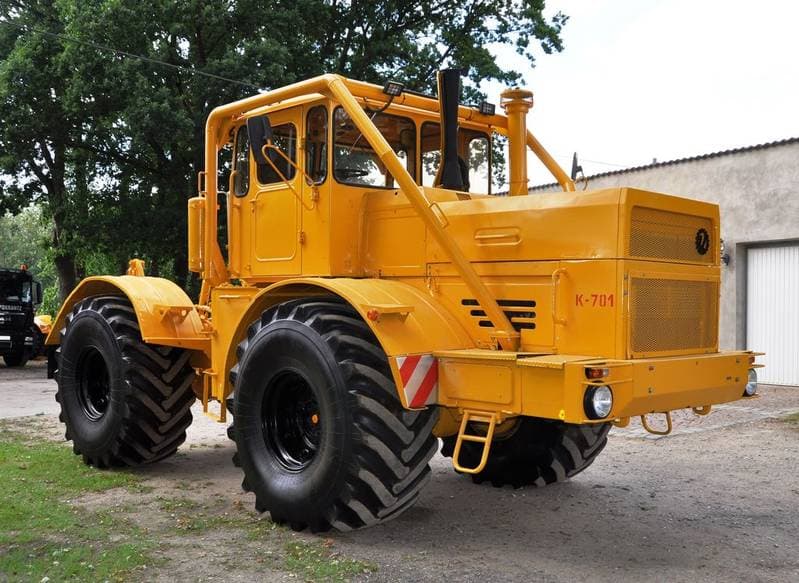

Kirovets K-701M

Last Updated: June 2024

Overview

The Kirovets K-701M is a large, articulated four-wheel drive (4WD) tractor, well-suited for utility work in demanding environments. It features an articulated power steering system and a four-speed power shift transmission, offering 16 forward gears and 8 reverse, aiding in various working conditions. The heart of the K-701M is the YaMZ 8423 engine; a turbocharged diesel 8-cylinder powerhouse with a liquid-cooled V-8 configuration. This engine boasts a large displacement of 1052 cubic inches, running at a rated 1900 RPM, and delivering a robust 335 horsepower. The tractor stands tall on Ag tires, supporting its weight of 32,200 lbs. Safety and operation are comforted by the enclosed cab, while the tractor's considerable dimensions speak to its substantial presence and capability in the field. Its weight and power define it as a workhorse capable of handling heavy-duty tasks, with a hitch rated at category IV.
Show more...

Key Specifications

Category: Utility

Power Output: 335

Transmission: Four-speed power shift

Drive Type: 4WD

Operating Weight: 32200

Fuel Type: Diesel

Kirovets K-701M vs. Similar Tractors

Power Output
Excellent
Greater than 95% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
YaMZ
Model
8423
Cooling Type
Liquid-cooled
Cylinder Orientation
V-8
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
8
Displacement (ci)
1052
Bore (in)
5.51
Stroke (in)
5.51
Rated RPM
1900
Power Output (hp)
335

Transmission

Type
Four-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
295.3
Width (in)
112.2
Height (in)
159.4
Operating Weight (lb)
32200

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Articulated power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
32
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category 3
Hitch Category
IV
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
