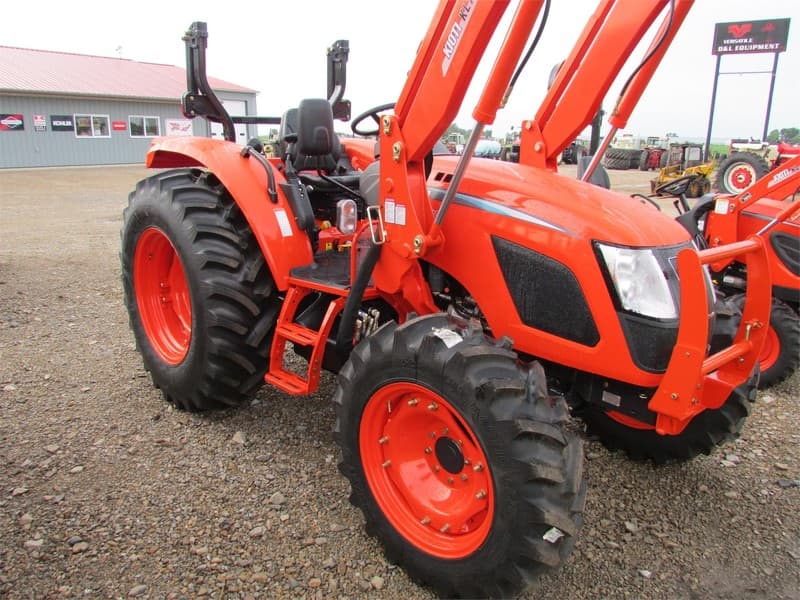

Kioti RX7320

Last Updated: June 2024

Overview

The Kioti RX7320 is a utility tractor that embodies versatility and durability. Produced by Kioti, part of the Daedong group, since 2014, this tractor is equipped for a variety of tasks, whether it's farm work, landscaping, or maintenance duties. At its heart lies a powerful Daedong 4F243T four-cylinder turbocharged diesel engine, offering 73 horsepower at a rated RPM of 2600. This model has several transmission options, including a synchro shuttle with 12 forward and reverse gears, as well as versions with a power shuttle and a creeper capability for a total of 24 gears in each direction. Its 4WD chassis ensures reliable performance in diverse conditions, accompanied by features like hydrostatic power steering and robust wet disc brakes for optimized control. Designed for convenience and efficiency, the RX7320 can be outfitted with either a comfortable Cab or a foldable ROPS, depending on the user’s preference, all the while offering powerful hydraulic and PTO capabilities.
Show more...

Key Specifications

Category: Utility

Power Output: 73

Transmission: Synchro shuttle, power shuttle, creeper power shuttle

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 5600 (ROPS) / 6162 (Cab)

Fuel Type: Diesel

Kioti RX7320 vs. Similar Tractors

Power Output
Average
Greater than 66% of similar tractors.
Hitch Capacity
Average
Greater than 68% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
4F243T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
148.6
Bore (in)
3.43
Stroke (in)
4.02
Rated RPM
2600
Power Output (hp)
73

Transmission

Type
Synchro shuttle, power shuttle, creeper power shuttle
Forward Gears
-
Reverse Gears
-
Total Gears
12 forward and 12 reverse; 24 forward and 24 reverse with creeper

Dimensions

Length (in)
146.1
Width (in)
77.2
Height (in)
107.5 (ROPS) / 104.3 (Cab)
Operating Weight (lb)
5600 (ROPS) / 6162 (Cab)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
540E
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (Ag) / 18 (Industrial)
Front Tire Width (in)
-
Rear Tire Diameter (in)
30 (Ag) / 24 (Industrial)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
3900 lbs
Operator Station Type
ROPS, Cab (optional)
Starter Type
Electric
Brake Type
Wet discs
Hydraulic System Type
Open center gear pump
