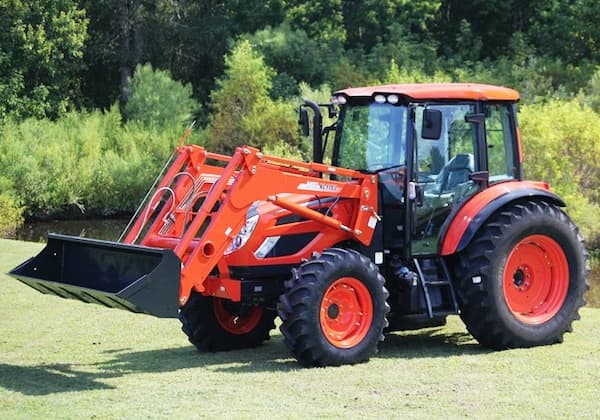

Kioti PX9530

Last Updated: June 2024

Overview

The Kioti PX9530 is a utility tractor designed for a wide range of agricultural tasks. Its chassis is a 4x4 MFWD 4WD setup, providing robust traction and stability across different terrains. This model features power steering and a 32-speed power shuttle transmission, making it highly adaptable to various worksite conditions. The tractor is powered by a 208 cubic inch, turbocharged, liquid-cooled, 4-cylinder diesel engine, manufactured by Doosan, producing 93 horsepower at 2200 RPM. It offers a comfortable cab for the operator and is built on a 93.3-inch wheelbase, resulting in a stable platform for heavy-duty use. The PX9530 has a dry operating weight of 8976 pounds and is equipped with standard agricultural tires, front sizing at 12.4-24 and rear at 18.4-34. With open center hydraulics and a Category II rear hitch, the tractor is capable of handling a variety of implements for versatile farm applications.
Show more...

Key Specifications

Category: Utility

Power Output: 93

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 8976

Fuel Type: Diesel

Kioti PX9530 vs. Similar Tractors

Power Output
Above Average
Greater than 78% of similar tractors.
Operating Weight
Average
Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer
Doosan
Model
DL03-LEA09
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
208
Bore (in)
3.86
Stroke (in)
4.45
Rated RPM
2200
Power Output (hp)
93

Transmission

Type
Power shuttle
Forward Gears
32
Reverse Gears
32
Total Gears
-

Dimensions

Length (in)
168.9
Width (in)
88.6
Height (in)
107.9
Operating Weight (lb)
8976

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
