Kioti PX9020

Last Updated: June 2024

Overview

The Kioti PX9020 is a utility tractor designed with versatility in mind. It is outfitted with a 4x4 MFWD 4WD chassis, indicating it has four-wheel drive capabilities, suitable for various types of work. Its power steering and a dual type transmission system (synchronized shuttle and power shuttle) that offers 16 forward and reverse gears, highlight its emphasis on easy operation and adaptability across tasks. The tractor is powered by a Perkins 1104D-44T engine, a liquid-cooled, four-cylinder turbo-diesel unit with 269 cubic inches displacement delivering 91.2 horsepower at a rated RPM of 2200. A feature that stands out is its considerable operating weight of 7970 pounds, offering stability and traction. Typical for utility tractors, this model is equipped with a Category II three-point hitch found at the rear and agricultural standard tires.

Key Specifications

Category: Utility

Power Output: 91.2

Transmission: Synchronized Shuttle/Power Shuttle

Drive Type: 4WD

Operating Weight: 7970

Fuel Type: Diesel

Image Gallery

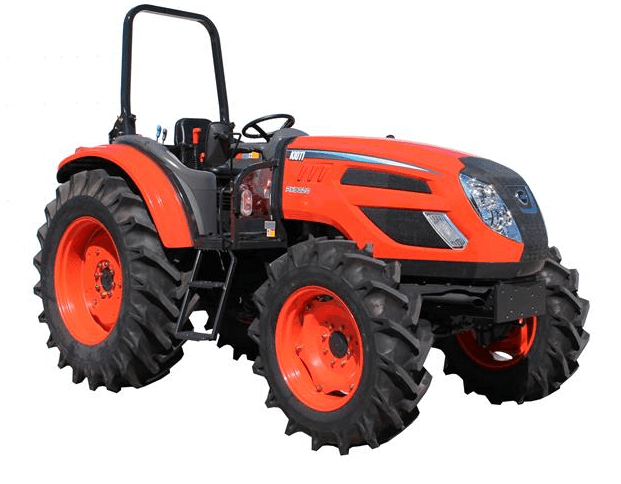

Kioti PX9020 Tractor

Kioti PX9020 vs. Similar Tractors

Power Output

Above Average

Greater than 77% of similar tractors.

Operating Weight

Average

Greater than 56% of similar tractors.

Technical Specifications

Engine

Manufacturer: Perkins
Model: 1104D-44T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 269
Bore (in): 4.13
Stroke (in): 5
Rated RPM: 2200
Power Output (hp): 91.2

Transmission

Type: Synchronized Shuttle/Power Shuttle
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 162.2
Width (in): 78.7
Height (in): 109 (cab height)
Operating Weight (lb): 7970

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category II three-point hitch
Hitch Category: II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
