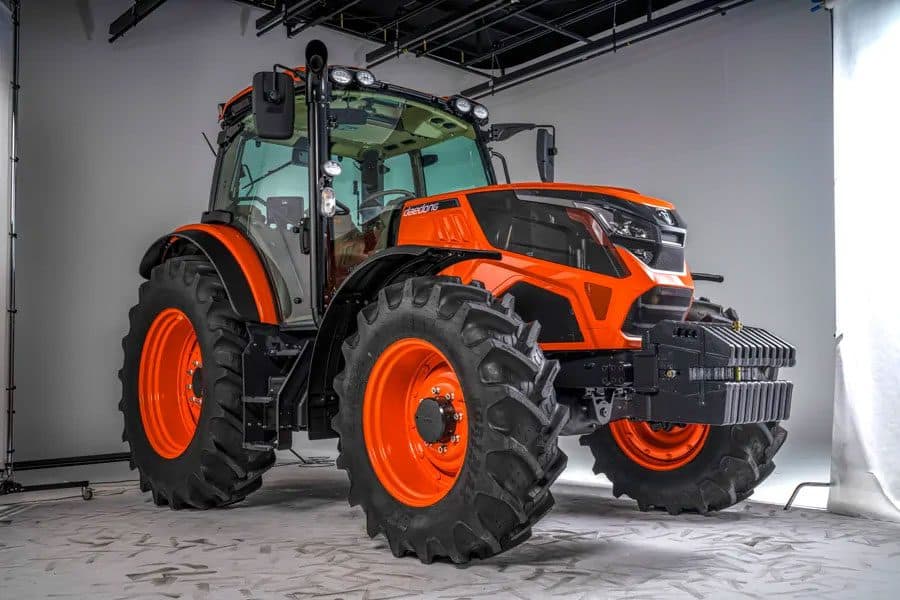

Kioti HX1301

Last Updated: June 2024

Overview

The Kioti HX1301 tractor is a sizable and potent machine designed for a range of agricultural tasks. Powered by a 130 horsepower Daedong 4J243TI turbocharged diesel engine, this tractor offers robust performance and is cooled by a liquid system ensuring steady temperature control. With an engine displacement of 233.9 cubic inches and an engine rated RPM of 2200, it has the capacity to handle heavy-duty operations with ease. The power shuttle transmission features 32 forward and reverse gears, providing flexibility and ease of use across different tasks. The tractor sports standard agricultural tires with the front tires sized at 420/70/28 and the rear tires at 520/70R38. With an operating weight of 10700 pounds, a length of 117.9 inches, a width of 89.3 inches, and a height of 118.5 inches, the HX1301 is built to handle a wide range of tasks reliably, from plowing to towing and beyond.
Show more...

Key Specifications

Power Output: 130

Transmission: power shuttle

Operating Weight: 10700

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Daedong
Model
4J243TI
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
233.9
Bore (in)
4.06
Stroke (in)
4.53
Rated RPM
2200
Power Output (hp)
130

Transmission

Type
power shuttle
Forward Gears
32
Reverse Gears
32
Total Gears
64

Dimensions

Length (in)
117.9
Width (in)
89.3
Height (in)
118.5
Operating Weight (lb)
10700

Power Take-Off (PTO)

PTO Type
540/1000
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
electric
Brake Type
-
Hydraulic System Type
closed center load-sensing
