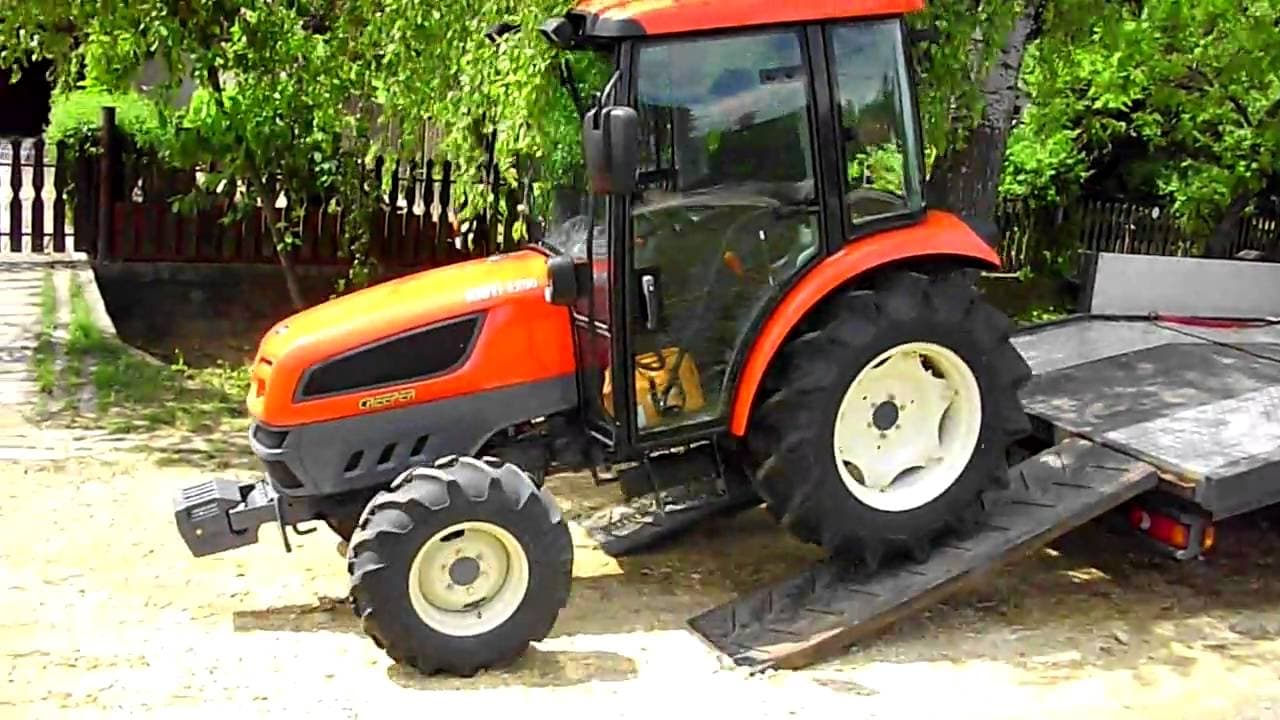

Kioti EX50

Last Updated: June 2024

Overview

The Kioti EX50 is a compact utility tractor that is well suited for a variety of tasks on a farm or estate. It is characterized by a 4x4 MFWD 4WD chassis, power steering, and the ability to select between a 24-speed synchro shuttle and an infinite 3-range hydrostatic transmission. The Kioti EX50 is powered by a 49 hp Daedong 4-cylinder, liquid-cooled, diesel engine with a displacement of 148.6 cubic inches, optimized to run at 2600 RPM. The engine is coupled with a dry disc clutch. The tractor's physical dimensions make it a robust, yet manageable tractor with an overall length of 134.2 inches, width of 69.2 inches, and a height of 97.8 inches when equipped with a cab. Weight varies slightly, with the hydrostatic version being lighter. The front and rear tire configurations vary depending on the application with agricultural, turf, and industrial options to cater to different tasks. This tractor would come in handy for tasks requiring a rear Type I hitch with a category 3 designation, though its hitch lift capacity is unspecified. Additional specifications such as front and rear tire dimensions, PTO speeds, brake type, and hitch lift capacity were not provided.
Show more...

Key Specifications

Category: Utility

Power Output: 49

Transmission: Synchro shuttle; Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 4398 to 4431

Fuel Type: Diesel

Kioti EX50 vs. Similar Tractors

Power Output
Average
Greater than 47% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
4B243LWM
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
148.6
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
49

Transmission

Type
Synchro shuttle; Hydrostatic
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
134.2
Width (in)
69.2
Height (in)
97.8 (with cab)
Operating Weight (lb)
4398 to 4431

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 9.5-16, Rear: 13.6-26; Turf: Front: 29x12.5-15, Rear: 21.5Lx16.1; Industrial: Front: 12-16.5, Rear: 17.5L-24
Manufacture - End Year
-
Hitch Type
Category 3, Rear Type I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
