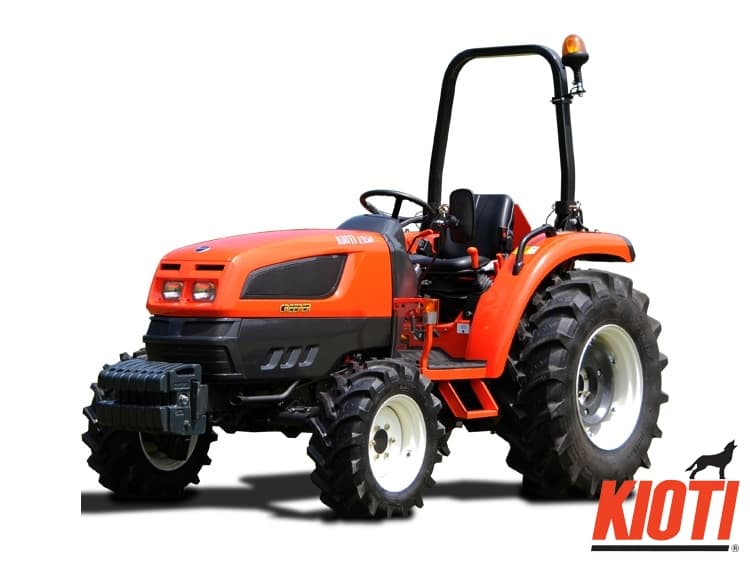

Kioti EX40

Last Updated: June 2024

Overview

The Kioti EX40 is a compact utility tractor designed for a variety of tasks in landscaping, small-scale farming, and similar applications. It features a four-wheel drive (4x4 MFWD 4WD) chassis with power steering to facilitate easier navigation and handling. At its core lies a 41 horsepower diesel engine manufactured by Daedong, model 4A200LWM, which is both capable and efficient, with a liquid-cooling system to maintain optimal operating temperatures. The engine disposes of a displacement of 122 cubic inches, and functions at an engine rated RPM of 2600. The EX40 boasts multiple transmission options including a 24-speed synchro shuttle as well as a hydrostatic transmission with infinite ranges. It offers flexibility with tire options, allowing for agricultural, turf, or industrial tires to suit various working conditions. With dimensions comprising a length of 134.2 inches, a width of 63.9 inches, and a cab height of 96.7 inches, this tractor can maneuver in assorted environments while offering a significant operating weight that contributes to its stability and performance. Indeed, the EX40 represents a robust and versatile tool for a range of outdoor tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 41 hp

Drive Type: 4WD

Operating Weight: Shuttle: 4387 lbs | Hydro: 4310 lbs

Fuel Type: Diesel

Kioti EX40 vs. Similar Tractors

Power Output
Average
Greater than 38% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
4A200LWM
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4-cylinder
Displacement (ci)
122
Bore (in)
3.27 inches
Stroke (in)
3.64 inches
Rated RPM
2600
Power Output (hp)
41 hp

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
24-speed synchro shuttle and Infinite hydrostatic (3-range)

Dimensions

Length (in)
134.2 inches
Width (in)
63.9 inches
Height (in)
96.7 inches (cab height)
Operating Weight (lb)
Shuttle: 4387 lbs | Hydro: 4310 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 8-16, Rear: 13.6-24 | Turf: Front: 27x8.5-15, Rear: 41x14-20 | Industrial: Front: 10-16.5, Rear: 14.9-24
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
