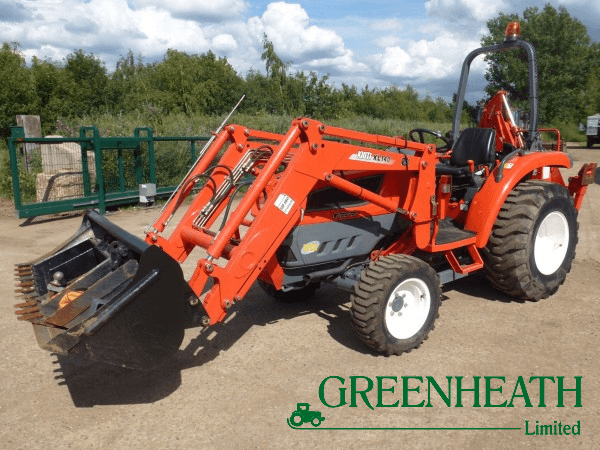

Kioti EX35

Last Updated: June 2024

Key Specifications

Category: Utility

Power Output: 38

Drive Type: 4WD

Operating Weight: Shuttle: 4138 | Hydro: 4131

Fuel Type: Diesel

Kioti EX35 vs. Similar Tractors

Power Output
Average
Greater than 35% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
3B183LWM
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
111.6
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
38

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
24

Dimensions

Length (in)
129.1
Width (in)
63.6
Height (in)
95.5 (with cab)
Operating Weight (lb)
Shuttle: 4138 | Hydro: 4131

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 7-16, Rear: 12.4-24 | Lawn/turf: Front: 27x8.5-15, Rear: 41x14-20 | Industrial: Front: 27x10.5-15, Rear: 43x16-20
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
