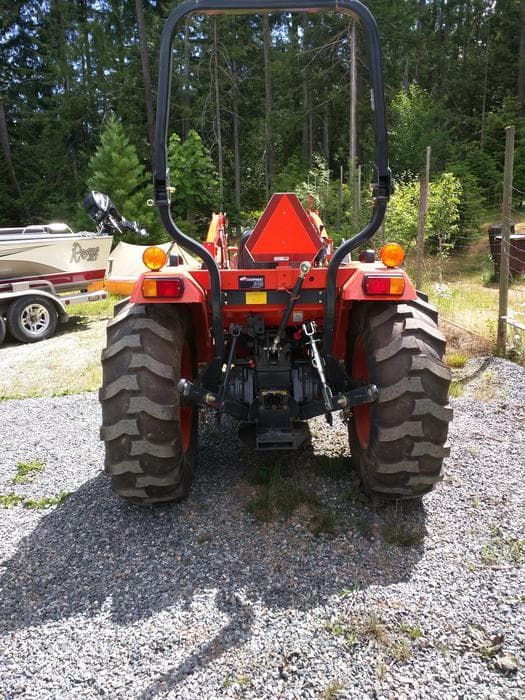

Kioti DS4510

Last Updated: June 2024

Overview

The Kioti DS4510 is a compact utility tractor that offers a blend of power and versatility, which positions it well for a variety of tasks around small farms, estates, and even commercial landscaping operations. It comes equipped with a robust four-wheel drive (4WD) system supported by a mechanical front-wheel drive (MFWD) chassis, and power steering that enhances maneuverability. The heart of this machine is a liquid-cooled, 134 cubic inch, Daedong diesel engine, which outputs 45 horsepower and is coupled with an 8-speed shuttle transmission allowing for ample speed selection both forward and reverse. The tractor's weight of 3,538 lbs and a wheelbase of 72.8 inches ensure stability in diverse working conditions, while the overall dimensions allow for good maneuverability. With its open center hydraulic system and electric starting system, this machine is designed for convenience and dependability. The ROPS (Roll-Over Protective Structure) height of 101.6 inches ensures compliance with safety standards, making it a reliable tractor for everyday use in a variety of settings.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Shuttle

Drive Type: 4WD

Operating Weight: 3538

Fuel Type: Diesel

Kioti DS4510 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
4A220LWM
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
134
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
45

Transmission

Type
Shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
123
Width (in)
69.5
Height (in)
101.6
Operating Weight (lb)
3538

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
