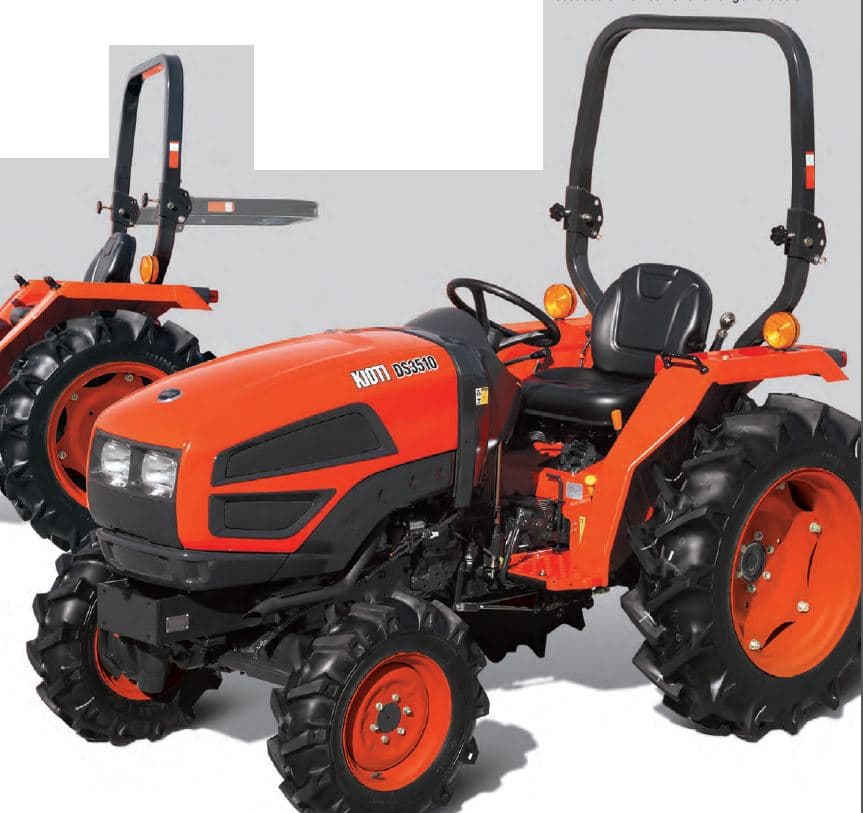

Kioti DS3510

Last Updated: June 2024

Overview

The Kioti DS3510 is a compact utility tractor known for its durable and versatile 4x4 MFWD 4WD chassis. As part of the Kioti lineup, produced by Daedong, it's equipped with a robust Daedong 3A165LWD engine that delivers 34 horsepower from its 3-cylinder, naturally aspirated diesel powerplant. The engine is coupled with an 8-speed shuttle transmission that provides a reliable drivetrain setup for various tasks. The liquid-cooled system and dry air cleaner handle rigorous conditions and maintain optimal performance. This tractor provides power steering for ease of maneuverability and comes with different tire configurations to meet diverse operational requirements, including agricultural, turf, and industrial applications. With an operating weight of 2897 lbs and a wheelbase of 64.6 inches, the DS3510 emphasizes stability and comfort. The tractor's size and power make it suitable for a variety of tasks around the farm, from mowing to loader work. Please note that certain specifics regarding its capacity for hydraulics, hitch, and PTO remain unknown, as do the manufacture start and end years.
Show more...

Key Specifications

Category: Utility

Power Output: 34

Transmission: Shuttle

Drive Type: 4WD

Operating Weight: 2897

Fuel Type: Diesel

Kioti DS3510 vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Operating Weight
Below Average
Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
3A165LWD
Cooling Type
Liquid
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
34

Transmission

Type
Shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
113
Width (in)
51.7
Height (in)
88.6 (with ROPS)
Operating Weight (lb)
2897

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Front: 7-14, Rear: 11.2-24 | Turf: Front: 8.50-15, Rear: 41x14-20 | Industrial: Front: 25x8.5-14, Rear: 15-19.5
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
