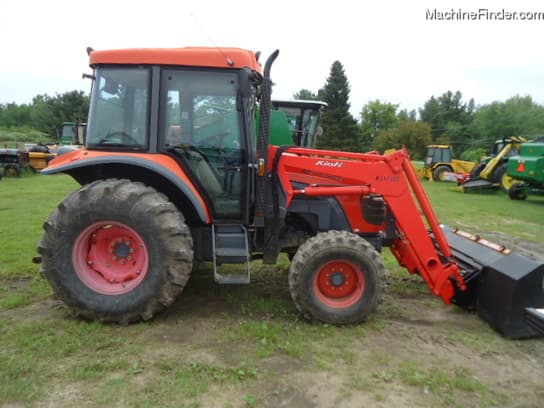

Kioti DK65S

Last Updated: June 2024

Overview

The Kioti DK65S is a tractor equipped with a 64 horsepower Perkins turbocharged diesel engine, suitable for various agricultural tasks. Its powerful 3-cylinder, 201 cubic inch engine is liquid-cooled and operates at a rated speed of 2200 RPM. Featuring a synchronized shuttle transmission, the tractor offers versatility with 12 forward and reverse gears. It comes with a three-point hitch with a lift capacity of roughly 2,200 kg, allowing it to handle significant payloads. The tractor's physical dimensions include a wheelbase of 80.6 inches, length of 159.9 inches, and a height with ROPS of 109.8 inches and with Cab of 104.3 inches, providing stability and comfort during operation. Available with a variety of tire options, the Kioti DK65S can be fitted with ag, turf, or industrial type tires depending on the job requirements.
Show more...

Key Specifications

Power Output: 64

Transmission: Synchronized shuttle

Operating Weight: 6503 (ROPS) / 6856 (Cab)

Fuel Type: Diesel

Lift Capacity: 4850.2 lbs @ 24 inches

Technical Specifications

Engine

Manufacturer
Perkins
Model
1103C-33T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
201
Bore (in)
4.13
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
64

Transmission

Type
Synchronized shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
159.9
Width (in)
68.9
Height (in)
109.8 (ROPS) / 104.3 (Cab)
Operating Weight (lb)
6503 (ROPS) / 6856 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydraulic
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24 (Ag) / 15 (Turf) / Unknown (Industrial)
Front Tire Width (in)
Unknown (Ag) / 13.50 (Turf) / Unknown (Industrial)
Rear Tire Diameter (in)
30 (Ag) / 20 (Turf) / Unknown (Industrial)
Rear Tire Width (in)
Unknown (Ag) / 18.00 (Turf) / Unknown (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Turf, Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
4850.2 lbs @ 24 inches
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
