Kioti DK5510

Last Updated: June 2024

Overview

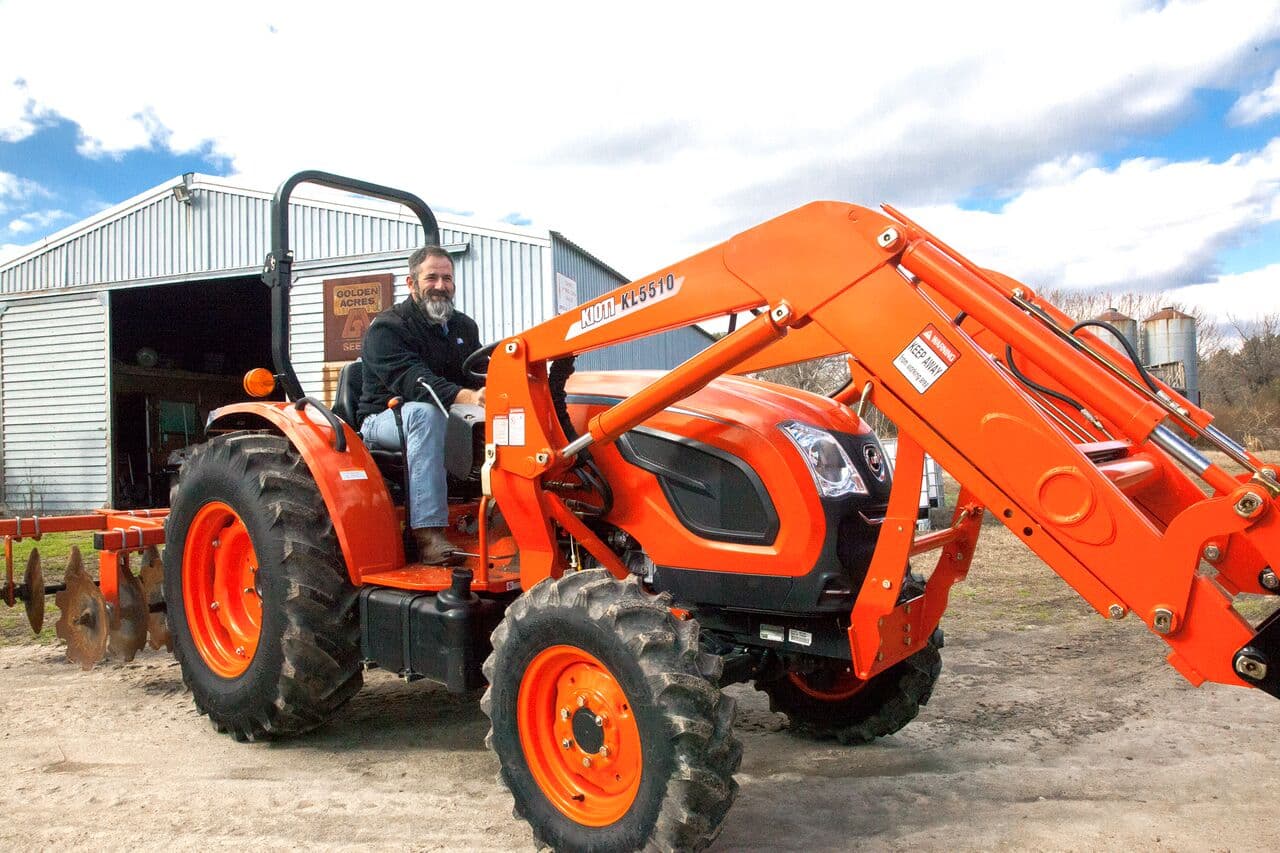

The Kioti DK5510 is a compact utility tractor designed for various tasks on a small farm or acreage. It is powered by a 55 hp Daedong diesel engine with common-rail direct injection and liquid cooling, providing reliable performance and efficiency. The tractor offers a mechanical shuttle transmission with 8 forward and reverse gears, which, together with the 4-wheel drive (4x4 MFWD), ensures substantial pulling power and maneuverability in different terrains. The steering type is power, which aids in easier handling and control. It has a dry disc clutch and an open center hydraulic system. The Kioti DK5510 is equipped with Category II rear hitch and operates at a rated 2600 RPM engine speed, delivering sufficient torque at 1700 RPM for various applications. The tractor's wheelbase measures 71.3 inches, giving it stability, and it features a ground clearance of 15.2 inches. This tractor is fitted with a Roll-Over Protection Structure (ROPS), signifying attention to the operator's safety. Specification details pertaining to the exact dimensions of tires, PTO speeds, and hitch lift capacity are not provided, but standard, lawn/turf, and industrial tire configurations are available. The robust design and capabilities of the DK5510 make it suitable for a wide range of tasks, including landscaping, small-scale farming, and property maintenance.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Mechanical shuttle

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 3373

Fuel Type: Diesel

Kioti DK5510 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Below Average
Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
3F183T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Common rail direct injection
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
55

Transmission

Type
Mechanical shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
124.8
Width (in)
62.8
Height (in)
92 (ROPS)
Operating Weight (lb)
3373

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag), Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Category II (Three-Point Hitch assumed based on "Rear Type: II")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
